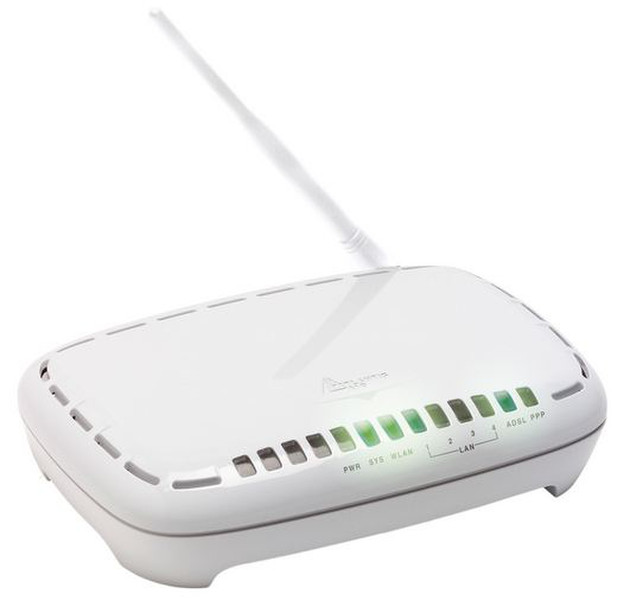

Atlantis Land WebShare 242W Fast Ethernet White

Name: Atlantis Land WebShare 242W
Brand: Atlantis Land

MPN: A02-RA242-W54

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / ⭐ Reviews / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Other features

Downstream data rate	24 Mbit/s
Input voltage	12 V
Networking features	Fast Ethernet
Input current	1 A
Frequency range	2.400 - 2.4835 GHz
Upstream data rate	1 Mbit/s
xDSL connection	Y

Security

Firewall security	NAT, PAP, CHAP, SPI
MAC address filtering	Y

Performance

Firmware upgradeable	Y

Protocols

DHCP server	Y
DHCP client	Y
DMZ support	Y
Supported network protocols	RIP1, RIP2, STATIC ROUTING,IP, ICMP, TCP, UDP, IGMP, PPPoA, PPPoE, RFC 1483

Management features

Reset button	Y
Quality of Service (QoS) support	Y
Universal Plug and Play (UPnP)	Y
Web-based management	Y

Antenna

Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
Antennas quantity	1

Design

Indication light	Y

Networking

Management protocols	SNMP MIB

DSL features

ADSL	Y
DSL specification	ANSI T1.413 issue 2: - ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite), ITU G.994.1 (G.hs) ADSL2: - ITU G.992.3 (G.dmt.bis) [12Mbps; 1 Mbps] ADSL2+: - ITU G.992.5 (G.dmt.bisplus) [24Mbps; 1 Mbps] ATM: - ATM Adaptation Layer Type 5(AAL5) & ATM: CBR, UBR, VBR-rt, VBR, ATM Forum UNI 3.0, 3.1 & 4.0

WAN connection

Ethernet WAN	Y

Wireless LAN features

Channels quantity	13

Ports & interfaces

DC-in jack	Y

Ethernet LAN features

Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10, 100 Mbit/s

Additionally

Ethernet LAN (RJ-45) ports quantity	4
Ethernet LAN connection	Y

Atlantis Land WebShare 242W. Ethernet LAN interface type: Fast Ethernet. DSL specification: ANSI T1.413 issue 2: - ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite), ITU G.994.1 (G.hs) ADSL2: - ITU G.. Networking standards: IEEE 802.11b, IEEE 802.11n, Management protocols: SNMP MIB. Supported network protocols: RIP1, RIP2, STATIC ROUTING,IP, ICMP, TCP, UDP, IGMP, PPPoA, PPPoE, RFC 1483. Antenna connector type: RP-SMA
