Security
| Firewall security |
NAT, PAP, CHAP, SPI |
| VPN support |
IPSec, PPTP |
| System event log |
Y |
| MAC address filtering |
N |
Networking
| Media access protocol |
CSMA/CA, ACK |
| Receiver sensitivity |
- 802.11b (1Mbps): -90dBm @8% PER\n- 802.11b (6Mbps): -88dBm @8% PER\n- 802.11b (11Mbps): -85dBm @8% PER\n- 802.11g (54Mbps): -68dBm @10% PER\n- 802.11n (150Mbps): -68dBm @10% PER |
| Management protocols |
SNMP MIB, Telnet, WEB |
Ethernet LAN features
| Cabling technology |
10/100BASE-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| ATM features |
AAL5, CBR, UBR, VBR-rt, VBR, UNI 3.0, 3.1, 4.0 |
| xDSL connection |
Y |
| Outdoor range |
100m |
| Networking features |
Fast Ethernet |
| Input voltage |
9 V |
| Input current |
2 A |
| Frequency range |
2.400 - 2.472 GHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
RIP1, RIP2, STATIC ROUTING, IP, ICMP, TCP, UDP, IGMP, PPPoA, PPPoE, RFC 1483 |
DSL features
| DSL specification |
ADSL(ITU G.992.1, ITU G.992.2, ITU G.994.1), ADSL2 (ITU G.992.3, ITU G.992.3), ADSL2+ (ITU G.992.5, ITU G.992.5) |
| ADSL |
Y |
Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
| Channels quantity |
13 channels |
Antenna
| Antenna gain level (max) |
2.2 dBi |
| Antenna connector type |
RP-SMA |
| Transmit power |
16 ± 1 dBm dBmW |
| Antennas quantity |
1 |
Power
| Power over Ethernet (PoE) |
Y |
Performance
| Firmware upgradeable |
Y |
| Chipset |
Ralink 3050, TrendChip TC3162LE (ADSL2+) |
System requirements
| Minimum hard disk space |
45 MB |
| Minimum RAM |
512 MB |
| Minimum processor |
Intel Pentium III 600Mhz |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Indoors max range |
35m |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

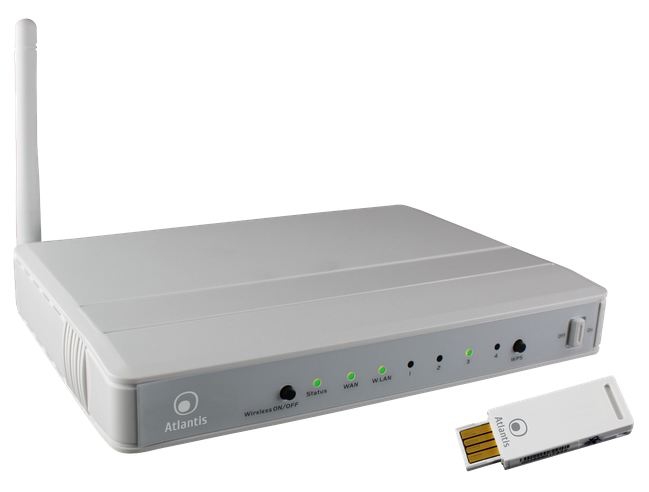

Wireless N 150Mbps ADSL2+ Router + USB Client Adapter, IEEE 802.11b/g/n, 4x 10/100 Mbps (RJ-45), 1x WAN (RJ-11), WDS
Always-On Internet
WebShare Wireless N System allows you not only to directly connect four PCs to the Router but gives you the freedom, thanks to the included wireless USB key, to move about with your laptop without loosing your connection.
Share your Broadband Connection
The Wireless N ADSL2+ Router supports 4 x 10/100 Mbps auto-negotiating Fast Ethernet ports for connection to your PC or LAN and downstream (with built-in ADSL2+ modem) rate up to 24Mbps. Power by NAT technology, dozens of network users can surf on the Internet and share the ADSL connection simultaneously by using one ISP account and one single IP address.
Wireless
Thanks to its embedded Access Point, based on the most recently 802.11n specifications, is possible to create high performance WLANs with extended coverage. No more dead zones and high speed (up to 150Mbps) are the most impressive characteristics of this innovative wireless technology, that ensure excellent throughtput performances merging with total freedom of mobility. The Wireless N Router also integrates the highest security standards WPA/WPA2-PSK to encrypt your data and give you piece of mind. Wireless N USB Adapter included.
Security: Firewall
This product also serves as an Internet firewall, protecting your network from being accessed by outside users. Not only provide the natural firewall function (Network Address Translation, NAT), it also provides rich firewall features to secure user’s network.
