Technical details
| Maximum transfer distance |
300 m |
| Type |
AV transmitter |
| Cable types supported |
Cat5, Cat7, Cat6 |
Power
| Current |
2 A |
| External power adapter |
Y |
| Operating voltage |
5 V |
Ports & interfaces
| Component video (YPbPr/YCbCr) in |
1 |
| Audio (L,R) out |
1 |
| Component video (YPbPr/YCbCr) out |
1 |
| RJ-45 input ports |
1 |
| DC-in jack |
Y |

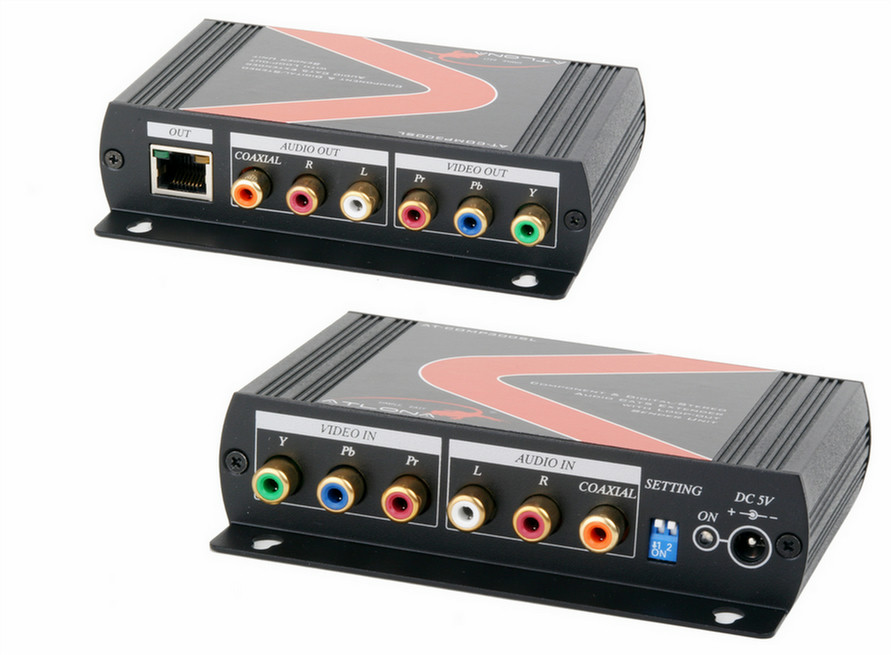

Component video with analog/digital audio cat5/6/7 extender with component loop-out
Atlona Extension system is designed for Component Video + Stereo Audio, Digital Audio signal over cost effective CAT5/6/7 cable instead of Component Video and Audio cable. This AV Extender is smart, fast and cost-effective, eliminating costly and bulky Component Video and Audio cable and is the most efficient way to move multimedia content from player to display. Component Video & Audio Extender is used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows and computer based training application.
- Extends Component Video and analog/digital audio over one UTP CAT5/6/7 cable.
- Supports analog stereo audio and digital audio.
- Digital transmission on analog stereo audio for eliminating sound distortion. (Dolby Digital,AC3, DTS passed through)
- Supports hi resolution up to 1080p.
- Long range transmission up to 1000ft ( 300m )
- Dual output: 1 Component Video loop output for local, plus 1 x CAT5 RJ45 output for
- remote side.
- Built in equalization, gain adjustment, chainable CAT5 output at remote unit.
- Receiver unit can be daisy chained to another AT-COMP300RL receiver to extend working
- range over 1000ft.
- Application for airports, train & bus stations, window display, trades shows and an exhibitions.
