Technical details
| Maximum transfer distance |
40 m |
| Bandwidth |
4.95 Gbit/s |
| Type |
AV transmitter |
| Cable types supported |
Cat5e, Cat6 |
Ports & interfaces
| Audio (L,R) out |
1 |
| DC-in jack |
Y |
| RJ-45 output ports |
1 |
| HDMI in |
1 |
Power
| External power adapter |
Y |
| Operating voltage |
5 V |

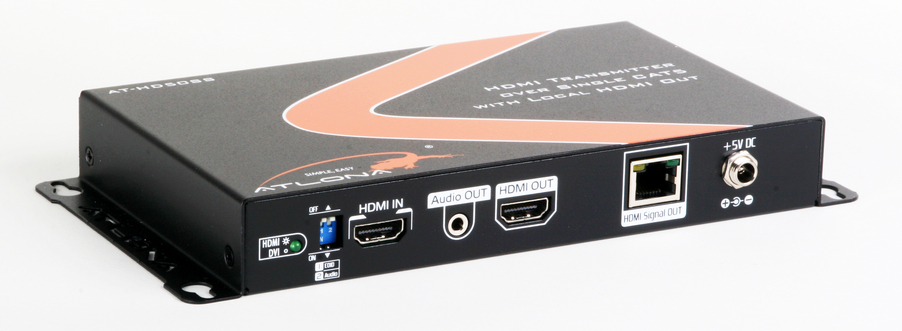

HDMI Extender over single Cat5/6, Local video output, Transmitter Unit
The Atlona HDMI over Single CAT5e/6 Distribution Series creates the ability to extend any HDMI source up to 130ft (40M). Using the AT-HD50RSL of the series you can cascade from a source to up to 10 devices and up to a combined distanced of 1300ft (400M).
Note: The AT-HD50SS is only a sender/transmitter unit and requires a receiver unit to work. Compatible receives are:AT-HDRS, AT-HD15SRS (CAT5/6 in and HDMI out) or AT-HD50RSL (Cat5/6 input, CAT5/6 loop-out for further cascading, HDMI output). For longer runs use the AT-HDRP for up to an additional 130ft over 1080p and 200ft over 1080i.
- 3D Capable
- Supports Analog and Digital Audio
- Dolby TrueHD and DTS-HD Master Audio pass through
- HDCP compliant
- Regenerates the HDMI signal, so there is no signal loss
- Supports default HDMI EDID and has the ability to learn the EDID of displays
- Extends up to 40m (130ft) at 1080p using CAT5e/6 cable
- Allows cascading when used with the AT-HD50RSL
- Compatible with different receiver options: AT-HDRS and AT-HD50RSL
- Compatible with AT-HDRP for boosting your signal on long runs
Note: Atlona recommends to use Cat6 or Cat5e cables for better performance and to always use a "Type B" termination for the Cat6 or Cat5 Cables to extend the distance.
