Security
| IP-MAC-Port binding |
Y |
| MAC address filtering |
Y |
Operational conditions
| Heat dissipation |
195 BTU/h |
| Non-operating altitude |
0 - 12000 m |
| Operating altitude |
0 - 3000 m |
Data transmission
| Switching capacity |
8 Gbit/s |
| Number of trunks |
8 |
| Latency (10-100 Mbps) |
700 µs |
| Number of multicast groups filtered |
255 |
Networking
| Port mirroring |
Y |
| Link aggregation |
Y |
| Auto-sensing |
Y |
| Full duplex |
Y |
Ports & interfaces
| SFP+ module slots quantity |
24 |
| Compatible memory cards |
Not supported |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Console port |
RJ-45 |
Power
| Power consumption (max) |
57 W |
| Input voltage |
85 - 264 V |
Design
| Form factor |
1U |
| Rack mounting |
Y |
24 x SFP+, 8 Gb/s, 1U, USB, RJ-45, 10/100, 19'' rack, 4.2 kg, 42.88 x 4.29 x 30.66 cm, 195 BTU/hr, 85 - 264 V, 47 - 63 Hz

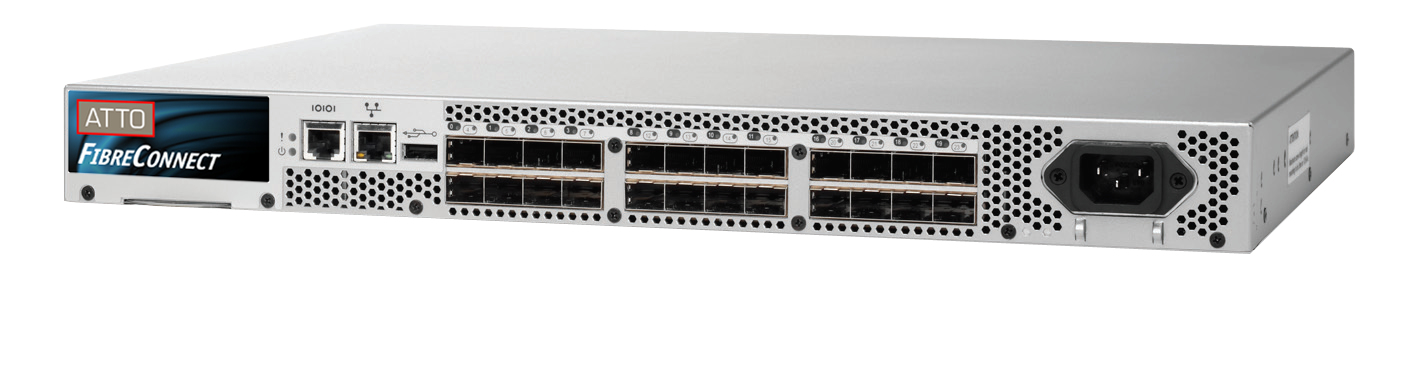

The ATTO FibreConnect™ 8316 8Gb/s Fibre Channel switch provides enterprise-level features for small to mid-range SANs to enable high performance and low latency collaborative workflows. The FibreConnect 8316 switch is available in a 16-port configuration with an 8-port expansion to extend your switch to 24 ports. FibreConnect 8316 is an affordable solution for consolidating storage on a SAN, which increases productivity and allows multiple users to more efficiently share resources.
The FibreConnect™ 8316 switch is easy to deploy, manage and integrate into both new and existing SANs. FibreConnect provides exceptional performance and functionality at an entry-level cost. It combines auto-sensing 2, 4, and 8Gb/s Fibre Channel throughput with features that greatly enhance workflow processes, allowing users to share resources for applications such as HD video editing, post production, video-on-demand and complex databases. With Ports on Demand scalability from 16 to 24 ports, the 8316 switch enables organizations to grow their storage networks when necessary, in a non-disruptive manner.
