Data transmission
MAC address table |
16000 entries |
Switching capacity |
17.6 Gbit/s |
Jumbo frames |
9216 |
Number of VLANs |
256 |
Throughput |
13.1 Mpps |
Performance
Processor frequency |
400 MHz |
Noise level |
58 dB |
Stackable |
Y |
Physical stacking (units) |
8 |
Internal memory |
128 MB |
Built-in processor |
Y |
Flash memory |
32 MB |
Security
Authentication |
Port-based authentication |
BPDU filtering/protection |
Y |
Management features
ARP inspection |
Y |
Web-based management |
Y |
Traffic shaping |
Y |
Quality of Service (QoS) support |
Y |
Operational conditions
Heat dissipation |
118 BTU/h |
Non-operating altitude |
0 - 3048 m |
Operating altitude |
0 - 3048 m |
Networking
VLAN support |
Y |
IGMP snooping |
Y |
Tagged VLAN |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Port-based VLAN |
Y |
Protocol-based VLAN |
Y |
Flow control support |
Y |
DHCP client |
Y |
DHCP server |
Y |
10G support |
N |
Full duplex |
Y |
Design
Form factor |
1U |
Electromagnetic compatibility |
CISPR22, Class A/CISPR24, EN55022 Class A/EN55024, FCC Part 15 Class A, ICES-003, AN/NZS 3548, BSMI, MIC, VCCI Class A |
Safety |
IEC 60950, EN 60950, UL60950, CSA22.2, #60950, NOM |
Rack mounting |
Y |
Power
Number of power supply units |
1 |
Power consumption (max) |
35 W |
Ports & interfaces
Installed SFP modules quantity |
2 |
Basic switching RJ-45 Ethernet ports quantity |
48 |
Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Fast Ethernet (copper) ports quantity |
48 |
Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Console port |
RJ-45 |
Combo SFP ports quantity |
2 |
Protocols
Management protocols |
SNMP v1/v2/v3, Telnet |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |

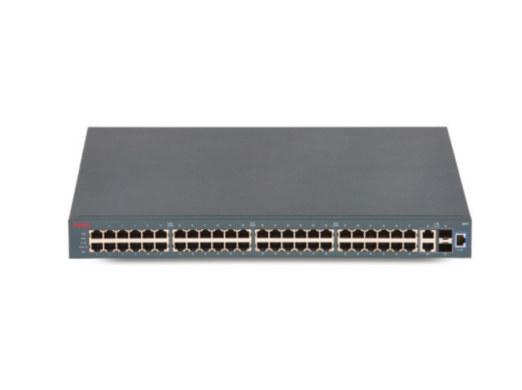

Layer 3, 48 x 10/100Mbps RJ-45 (2 x Combo SFP), 2 x SFP 2.5G
Ethernet Switches That Are Simple to Operate
- Deploy these Ethernet Switches for a small or midsize company to power end-user devices throughout the office. They come with certified one-minute plug-and-play for IP phones, an intuitive management GUI, and automated set-up. It can be installed in open environments outside the wiring closet
- Choose from 10-, 24- and 48-port variants, and standalone and stackable options. There are also fanless models for silent running in classrooms, hospitality suites, or retail sites. All are easy to install, manage, and run.
- Pace your growth with our resilient stacking design that supports pay-as-you-grow scaling. Use up to 80 Gbps of virtual backplane capacity and connection for up to 384 devices.
Simple to Operate
Plug and play for IP phones, automated QoS provisioning, and GUI management simplify initial deployment as well as ongoing adds, moves, and changes.
Cost Effective
100+ enterprise class features, including PoE, PoE+, at price points that fit into tight budgets.
Easy Set-Up for Avaya IP Office
If you’re using Avaya IP Office for communications, our auto set-up really simplifies integration and provisioning.
Certified One-Minute Plug-and-Play for IP Phones
When an IP phone is plugged in, it is automatically recognized and configured. This can dramatically simplify the roll out and management of IP phones.
Auto Set-Up for Avaya IP Office
The switch includes an automated script enabling fast, error-free installation when deployed with Avaya IP Office. The script automatically sets up VLAN, QoS, and other switch parameters, so IP Office and IP Phones are ready for immediate connection. Avaya takes a typically hours-long task— especially to someone not familiar with an Ethernet switch—and reduces it to a minute.
Intelligent Stacking Delivers Scalability
Avaya combines a non-blocking internal switching fabric with a high-speed virtual backplane, enabling proportional scaling and automated software configuration when new switches are added. Up to eight switches and 384 user ports can be supported by cabling units together.
Lifetime Warranty
Avaya provides warranty services for the Ethernet Routing Switch 3500 Series. The warranty includes ongoing technical support and complimentary next-business-day shipment to replace failed units.
