Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| Composite video out |
1 |
| VGA (D-Sub) input ports |
1 |
| USB connector type |
Mini-USB A |
Packaging content
| User guide |
Y |
| Carrying case |
Y |
Camera
| Light exposure modes |
Manual, Auto |
| Light source |
LED |
| Image freeze |
Y |
| Maximum frame rate |
30 fps |
| Effective sensor resolution |
5 MP |
| Sensor type |
CMOS |
Power
| USB powered |
Y |
| Power supply type |
AC/USB |
Lens system
| Auto focus |
Y |
| Digital zoom |
16 x |
| Optical zoom |
12 x |
| Shooting area (WxD) |
420 x 315 mm |
Technical details
| Built-in microphone |
Y |
| Memory capacity (images) |
80 |
| Photo effects |
Mirror, Negative film |
| Lamp type |
LED |
Weight & dimensions
| Dimensions folded (WxDxH) |
367 x 182 x 63 mm |
System requirements
| Mac operating systems supported |
Y |
1/3.2" CMOS, 5M pixels, 1920x1080, 2592 H x 1944 V, 30 fps, Mini-USB A
<b>The most comprehensive feature set</b>

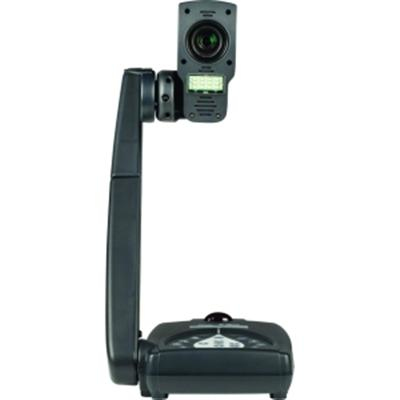

Core matters. That’s why the M70 is a true workhorse at the core. With 5MP, 192X zoom, onboard annotation, it gets down into the nitty-gritty.
<b>Zoom. Zoom.</b>
At 192X, the M70 packs one of the biggest zooms you will find in a document camera. With this level of magnification, you can actually see chemical reactions at work, including yeast converting sugar water into energy and carbon dioxide. It looks like networks of gears and cogs in motion (very cool – try it with the M70!). A bonus is that when you are in digital zoom, you can move around the image while you are still zoomed in.
<b>Megapixels. Mega images. Mega wows.</b>
Learning becomes wonderment when it's unfolding on the big screen and nothing puts on a show like the 5 megapixels of the M70 doc cam that's primed to show crisp text, bright images and vivid colors. The M70 is also engineered with a large imaging sensor to collect lots of light. More megapixels and more light mean better resolution and gorgeous detail for showcasing your classroom's best.
