System requirements
| Mac operating systems supported |
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
Lens system
| Optical zoom |
8 x |
| Shooting area (WxD) |
400 x 300 mm |
| Digital zoom |
8 x |
Ports & interfaces
| USB connector type |
Mini-USB |
| VGA (D-Sub) input ports |
1 |
| VGA (D-Sub) output ports |
1 |
| Composite video out |
1 |
Technical details
| Memory capacity (images) |
240 |
| Photo effects |
Mirror, Negative film |
| Lamp type |
LED |
| Cable lock slot |
Kensington |
| Built-in microphone |
Y |
| Camera movement |
Manual |
Power
| Operating voltage |
12 V |
| Power supply type |
AC |
Camera
| Sensor type |
CMOS |
| Light exposure modes |
Manual, Auto |
| Light source |
LED |
| Image freeze |
Y |
| Maximum frame rate |
30 fps |
| Effective sensor resolution |
5 MP |
Weight & dimensions
| Dimensions folded (WxDxH) |
184 x 342 x 410 mm |
5MP, 1/2.5” CMOS, 1920 x 1080, 30 fps, 8x optical Zoom, 8x Digital Zoom, LED light, SDHC, HDMI, USB, RGB, RS-232, Composite, 3.5 mm, 1.77kg

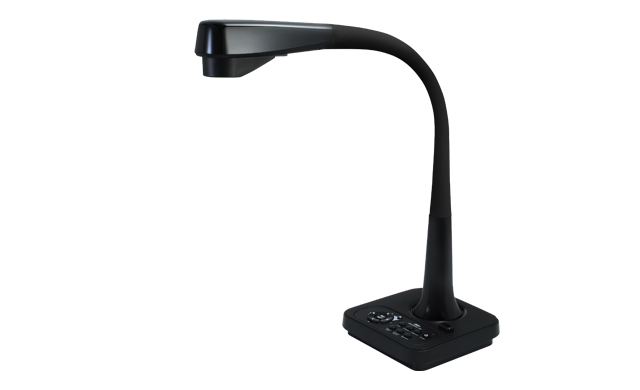

Hold students’ attention from start to finish with the vivid, full HD1080p streaming images of the F55 Visualiser. Zoom in to examine the minute details of any object or make annotations simply by connecting a mouse. Capture high resolution images or record HD video with audio to share with students so they can review lessons at home at their own pace. In addition, the complementary A+ Suite Visualiser software gives teaching staff a wide array of unique tools to maximise the effectiveness of any lesson.
- large A4 portrait shooting area (400 x 300 mm) for easily capturing oversized documents and 3D objects
- HDMI output support for full HD imaging and simultaneous audio/video playback
- built-in MIC for simple audio recording
- built-in memory, SDHC card slot and USB OTG port for extensive image storage
- user-friendly OSD (on-screen display) that puts every feature just a few clicks away
- embedded LED lamp with approximately 20,000 hours of life
- presentation tools (spotlight & visor features), picture-in-picture and split screen ideal for step-by-step presentations and making comparisons
- A+ Suite software collection featuring A+ Plug-in for PowerPoint, Word and Excel, and our standalone Visualiser software AVerVision 4
