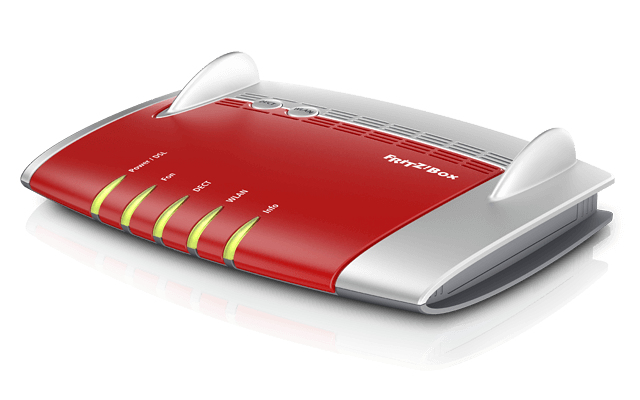

AVM FRITZ!Box 7560 International

AVM FRITZ!Box 7560 International The Fast, Versatile Home Network
The FRITZ!Box 7560 is an ideal device for starting out with fast, versatile
home networking on IP-based connection. With gigabit LAN, a USB port
and an interface for analog devices, the FRITZ!Box 7560 fulfills a wealth
of communications needs.

Fast connections through VDSL, Wireless AC+N and gigabit Ethernet
The FRITZ!Box 7560 brings high-speed home networking to any
DSL connection—be it ADSL/ADSL2+ or VDSL—and can be deployed on
any DSL provider's lines. Modern Wireless AC+N provides for high speeds
of up to 866 Mbit/s in the wireless home network. The FRITZ!Box 7560
supports 2.4 GHz and 5 GHz concurrently. This provides for noticeably
greater range and higher transmission rates in the wireless LAN. Equipped
with the latest processor and four ultra-fast gigabit LAN ports, the box is
perfect for high-speed networking.

Versatile telephony options
The integrated telecommunications system is designed for IP-based
(Voice over IP) connections. Calls are conducted using up to six cordless
telephones, which are registered on the integrated DECT base station. There
is also a line available for conventional analog telephony. IP telephones and
smartphones can also be deployed like any other handset in the integrated
telephone system. Multiple integrated answering machines, local telephone
books and online telephone contacts and a slew of convenience functions
round out the broad telephony palette of the FRITZ!Box 7560. The integrated
DECT base station also provides for Smart Home functionality: In combination
with FRITZ!DECT 200 smart plug, each device connected can be switched
individually by the FRITZ!Box user—via app, automatically, or using a cloud
service.

Videos, music and more in the entire home network
The FRITZ!Box 7560 is equipped with a USB 2.0 port to connect USB equipment
like printers or hard drives so that they can be used by the entire network. A
media server offers a powerful and efficient platform for networked applications
like IPTV, video on demand and media streaming. Saved videos, music and
pictures are available throughout the entire network and can be distributed
to playback devices using a smartphone and FRITZ!App Media.

AVM FRITZ!Box 7560 Edition International at a glance:
Internet connection
- Suitable for all IP-based connections (ADSL and VDSL)
- Highest Internet speed through VDSL vectoring
- Secure Internet use through the preconfigured firewall
- Internet access also possible via LTE or UMTS mobile dongle
- Secure remote access to the home or company network via VPN

Wireless LAN
- More performance, flexibility and the robust connections thanks to concurrent Wireless AC+N (dual band)
- Fast 866 Mbit/s and highly robust transmission via Wireless AC (5 GHz)
- Maximum range through Wireless N (2.4 GHz) with up to 450 Mbit/s
- Secure wireless LAN encryption in accordance with the WPA2 standard, individual password enabled upon delivery
- Simple, secure registration of new wireless devices in the home network at the push of a button (WPS)

Telephony
- VoIP telephone system with versatile convenience functions for analog, DECT and IP telephones
- DECT base station for up to 6 cordless telephones (including all FRITZ!Fon models) and for the FRITZ!DECT 200 switchable outlet
- Up to five integrated answering machines with remote inquiry and optional e-mail forwarding
- Management of telephone books, online contacts (like Google) can be integrated
- Fax reception and dispatch
- DECT radio switched off for standby operation (DECT Eco)

FRITZ!OS
- Simple user interface for the entire range of settings in German, English, French, Italian, Dutch and Spanish
- Provision of music, videos, and images via integrated media server, for instance on smart TV
- With MyFRITZ!, secure access to your own FRITZ!Box and network storage from anywhere in the world
- Parental controls with versatile filters, for instance time limits for Internet access, blocks for websites and exchange platforms
- Convenient and secure allocation of the wireless/LAN guest access
- New functions constantly added with regular, free updates, always up to date with the auto update function
- Energy savings through scheduled wireless LAN switching and power adjustment for the LAN (Green mode)

Interfaces
- 1 USB 2.0 port for storage media (NAS), network printers and mobile communications dongles
- 4 ultra-fast gigabit LAN ports for computers, televisions and other network devices
- 1 analog port, for instance for a conventional telephone

Ideal in combination with
- FRITZ!Fon
- FRITZ!WLAN Repeater
- FRITZ!Powerline
- FRITZ!DECT
- FRITZ!App
- FRITZ!WLAN USB Stick
