Performance
Number of users |
2 user(s) |
Ports & interfaces
VGA (D-Sub) ports quantity |
1 |
Mouse port type |
USB |
Keyboard port type |
USB |
Number of computers controlled |
8 |
Video port type |
VGA |
Additionally
Wireless technologies |
Wired |
Ethernet LAN (RJ-45) ports quantity |
2 |

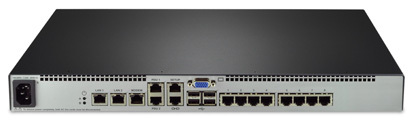

8-port, 1 digital KVM path, single AC power supply
Complete remote management for data centers and branch offices.
The MergePoint Unity® switch is the next generation KVM over IP appliance replacing the award winning DSR product.
This industry leading appliance provides IT administrators a complete and secure, remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
Using both in-band and out-of-band tools together allows for a more fault-tolerant and complete, remote management solution. Remote, out-of-band connections complement traditional in-band/software tools to improve troubleshooting, shorten response times and help minimize unplanned downtime.
The MergePoint Unity appliances provide remote users the capabilities of a direct, physical connection to KVM, USB and serial ports of servers and other IT equipment from anywhere.
- Advanced Remote Management – Provides secure and remote, out-of-band connections directly to the physical KVM, USB and serial ports to complement existing in-band software management tools
- Meet Service Level Agreements and Minimize Downtime – Unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment
- Virtual Media – Enables USB media such as CD-ROMs, flash memory and external drives to be virtually attached to a remote server's USB port
- CAC/Smart Card Support – Utilizing the virtual media capabilities remote or local users can map a USB-based smart card reader to the attached servers and authenticate using their smart cards
- Enhanced Serial Adapters – Supports standard, remote SSH connections to the attached serial devices and includes electronic pin-out options for quick and easy connections to the console ports on Cisco network equipment
- Power Device Port – Connect supported PDUs for integrated power control, measurement and reporting
- FIPS 140-2 compliant cryptography – The FIPS mode of operation uses an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1051)
