Display
| Display diagonal |
24 " |
| Viewable size, horizontal |
298.89 mm |
| Viewable size, vertical |
531.6 mm |
| Aspect ratio |
16:9 |
| Contrast ratio (dynamic) |
1000:1 |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
160 ° |
| Viewing angle, vertical |
170 ° |
| Display brightness |
250 cd/m² |
| Display |
LCD |
Ports & interfaces
| Composite video in |
1 |
| AC (power) in |
Y |
| PC Audio in |
Y |
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| PC Audio out |
Y |
| Audio input |
Y |
| Audio output |
Y |
| VGA (D-Sub) ports quantity |
1 |
Multimedia
| Number of speakers |
1 |
| RMS rated power |
2 W |
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
Y |
Power
| Power consumption (typical) |
30 W |
Ergonomics
| VESA mounting |
Y |
| Height adjustment |
N |
| VESA mounting interfaces |
75 x 75, 100 x 100 mm |
Weight & dimensions
| Depth |
56.7 mm |
| Weight |
5800 g |
| Width |
588.4 mm |
| Height |
355.9 mm |
Additionally
| Colour of product |
Black |
| S-Video in |
1 |
| AC adapter bundled |
Y |
| Operating temperature range (T-T) |
0 - 50 °C |
60.96 cm (24 ") , LCD, 1920 x 1080, 16:9, 250nit, 1000:1 Full-HD, VGA, DVI-D

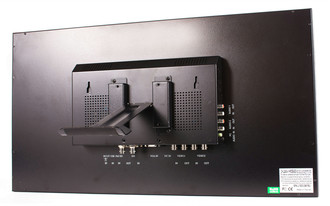

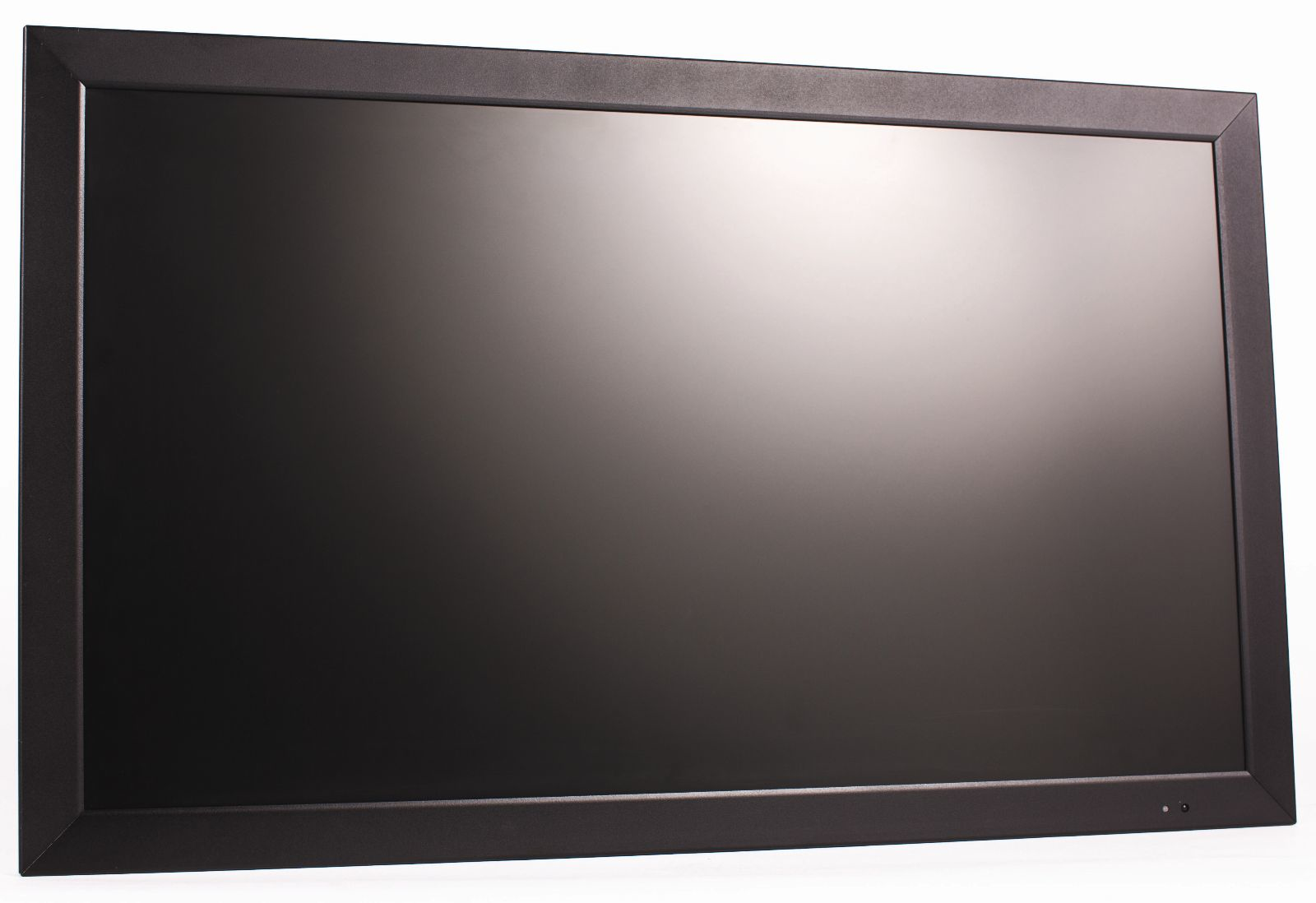

AVUE’s AVL240SDI is a 24" widescreen HD-SDI LCD monitor. It offers a full HD (1920 X 1080) resolution with a video quality of 1080p @ 25/30Hz. It comes with 2x composite (BNC), 1x SDI, 1x S-Video and 1x Full (HDMI) Video Input. With a full HD (HDMI) and VGA input and 2x Audio Outputs, this monitor is an exceptional product.
Its advanced new features includes color balance technology, 3D Comb Filter, 3D De-Interlace function, OSD Menu and a In-Built Speaker. Other than these features it also comes with PIP (video/PC) picture-in-picture function and uses VESA standard bracket. Incorporating industry-leading technology and versatile input/output signal capability, the AVL240SDI is the perfect addition to today’s HD operating industries.
