Other features
| Lens system |
F 1.0, DC-iris, CS mount |
| Data compression |
JPEG, MPEG-4 |
| Camera file format |
JPEG, MPEG-4 |
| Internal memory |
64 MB |
| Security features |
Multi user level password |
| Flash memory |
8 MB |
| Mac compatibility |
N |
| Minimum processor |
Pentium III 500 MHz |
| Supported network protocols |
IPv4/v6, HTTP, HTTPS, SSL/TLS, TCP, QoS, SNMPv1/v2c/v3 (MIB-II), RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP,DHCP, UPnP, ARP, DNS, DynDNS, SOCKS, IEEE802.1X |
| Minimum RAM |
128 MB |
Design
| Optical sensor size |
1/3 " |
| Built-in microphone |
Y |
| Sensor type |
CMOS |
Performance
| Camera shutter speed |
1/4 s - 1/15000 s |
| Minimum illumination |
1 lx |
| Focal length range (f-f) |
3 - 8 mm |
| Maximum video resolution |
1280 x 1024 pixels |
| Maximum frame rate |
30 fps |
| Megapixel |
1.3 MP |
211M- is a high performance megapixel network camera/ 1.3 megapixel/ 1280x1024
Megapixel video surveillance

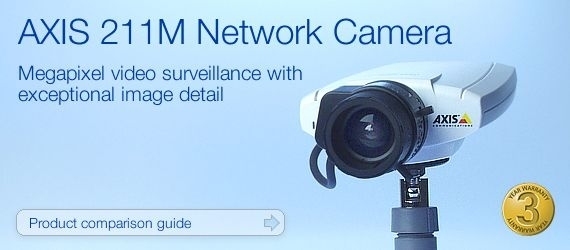

AXIS 211M Network Camera is a high performance megapixel network camera, designed for professional video surveillance in locations such as retail stores, schools, banks and governmental buildings.
Exceptional image detail
AXIS 211M features a 1.3 megapixel sensor that delivers crisp and clear images, perfect for the identification of objects and persons. The high quality lens uses DC-iris control for improving the depth of field and protecting the sensor at intensely illuminated scenes. The megapixel resolution allows important areas like entrances or checkouts to be monitored in great detail.
Larger area coverage
The increased resolution can also be used to provide a significantly larger overview. In the example, the inner rectangle shows the area covered by an analog CCTV camera. With the same number of pixels per area, the full 1280x1024 resolution provided by AXIS 211M - the outer rectangle - covers a three times larger scene.
