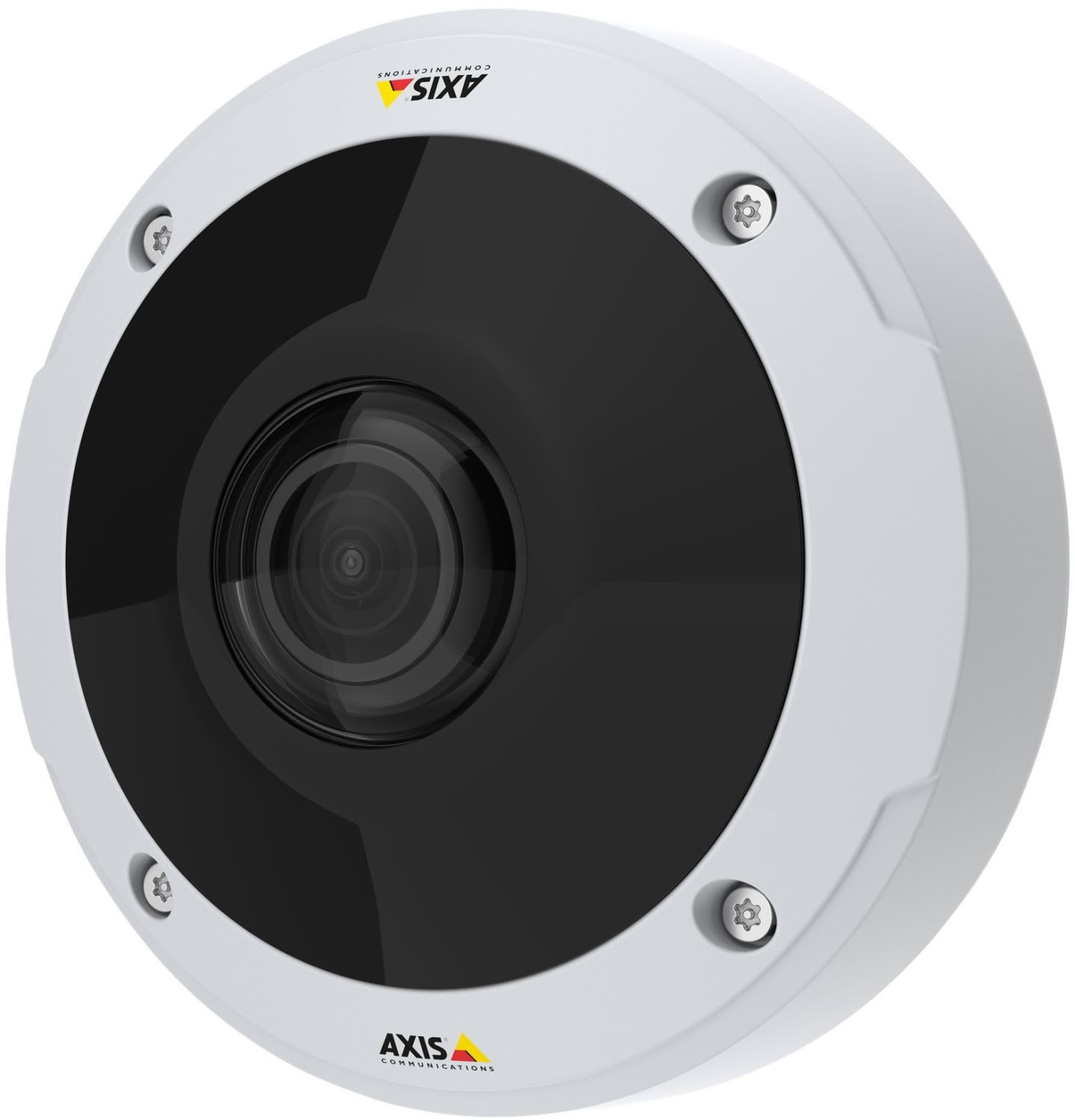

Axis M3058-PLVE

Camera type: IP camera

Equipment
Functions: with notification function, vandal-resistant
Video function: with night vision function
Number of cameras: 1
Notification type: Email, FTP server, HTTP
supported memory cards: SD
Connections: HDMI, RJ-45 PoE
Power supply: PoE (Power over Ethernet)

Housing
Housing colors: black, white
Mounting type: Wall mounting
Protection class: IP20
Areas of application: inside, outside
Swivel range: 0 - 180 °
Tilt range: 0 - 180 °
Temperature range: -40 to 50 °C
Weight: 770 g
Dimensions (W x H x D): 149 x 66 mm

Network
Interfaces: 802.3af (PoE), RJ45, 802.3at (hPoE)
LAN standards: 10/100Base-T(X), Ethernet 10/100

Objective
Objective focal length: 1,2 mm
Objective properties: variable focal length, fixed focal length
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,19 Lux
Aperture: 2,2

Video & Image
Resolution: 2.992 x 2.992 Pixel
Images per sec.: 25
horizontal viewing angle: 181 °
vertical field of view: 181 °
Sensor type: 1/1,7" Progressive Scan CMOS
Pixel sensor: 12 Megapixel
Image enhancement: Wide Dynamic Range (WDR)
Video formats: H.264, MJPEG
Video recordings: Color, black and white, HD, SD, Ultra HD

Further properties
Scope of delivery: Operating instructions, mounting material, template
additional image resolutions: 3584 x 1344 pixels, 3584 x 2688 pixels, 2304 x 1296 pixels
