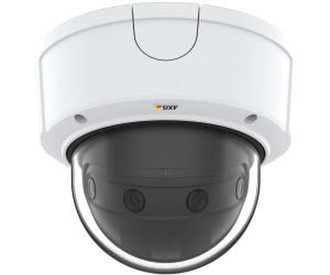

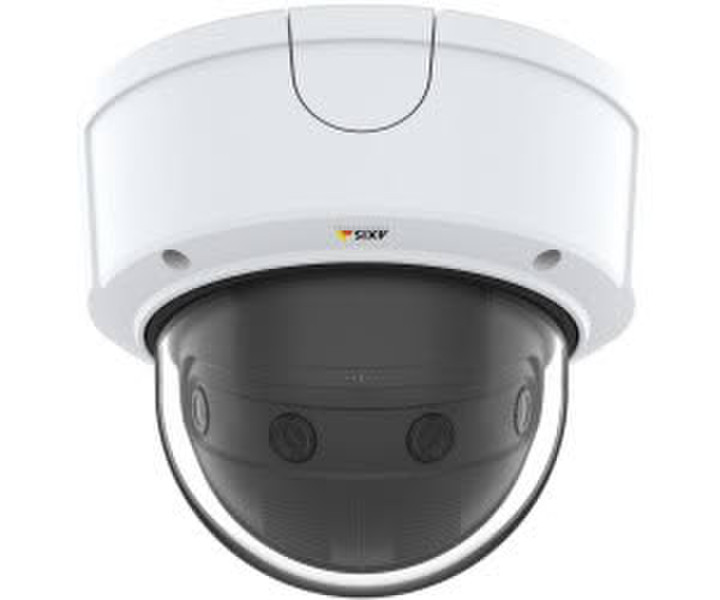

Axis P3807-PVE

Camera types: Dome camera, IP camera

Equipment
Functions: Motion detection, with notification function
Video function: with video stream
Number of cameras: 1
Notification type: Email, HTTP
Connections: RJ-45 PoE
Power supply: PoE (Power over Ethernet)

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP20
Areas of application: inside, outside
Swivel range: +/- 180 °
Tilt range: 55 °
Temperature range: -30 to 50 °C
Weight: 2.000 g
Dimensions (W x H x D): 198 x 166 mm

Network
Interfaces: 802.3af (PoE), RJ45, 802.3at (hPoE)
LAN standards: 10/100Base-T(X), Ethernet 10/100

Objective
Objective focal length: 3,2 mm
Objective properties: fixed focal length
Light sensitivity IR: 0,17 Lux
Aperture: 2

Video & Image
Resolution: 4.320 x 1.920 Pixel
Images per sec.: 25
horizontal viewing angle: 180 °
vertical field of view: 90 °
Sensor type: 1/2,9" Progressive Scan CMOS
Image enhancement: Wide Dynamic Range (WDR)
Video formats: H.264, MPEG-4, MJPEG
Video recordings: Color, Black-White, HD, Ultra HD

Further properties
Scope of delivery: Operating instructions, mounting material, template
additional image resolution: 480 x 270 Pixel
