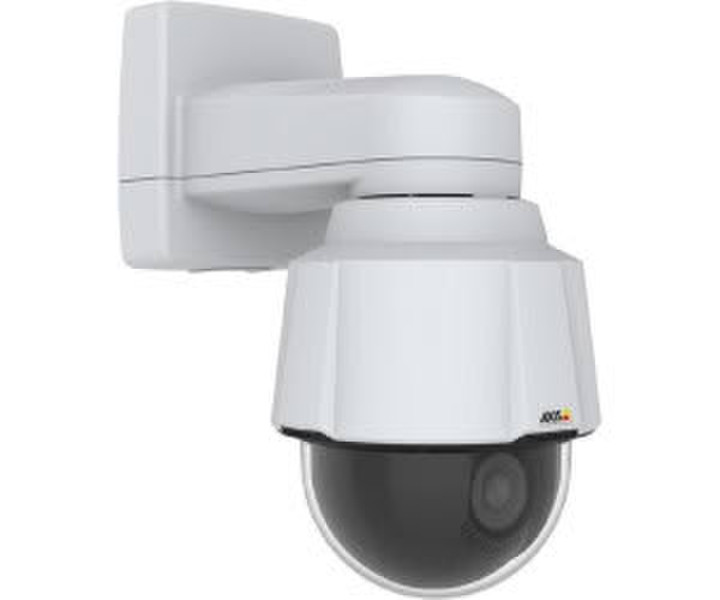

Axis P5655-E

Camera type: IP camera

Equipment
Functions: 360° rotatable, with notification function
Video function: with night vision function
supported memory cards: SD
Connections: RJ-45 PoE
Power supply: PoE (Power over Ethernet)

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP20
Areas of application: inside, outside
360° rotatable: yes
Swivel range: 360 °
Tilt range: 180 °
Outdoor function: waterproof
Temperature range: -30 to 55 °C
Weight: 2.500 g
Dimensions (W x H x D): 217 x 188 x 188 mm

Network
Interfaces: 802.3af (PoE), RJ45, 802.3at (hPoE)
LAN standards: 10/100Base-T(X), Ethernet 10/100

Objective
Objective focal length: 2,8 mm
Objective properties: fixed focal length

Video & Image
Resolution: 1.920 x 1.080 Pixel
Images per sec.: 60
horizontal viewing angle: 58,7 °
vertical field of view: 35,7 °
Sensor type: 1/2,8" Progressive Scan CMOS
optical zoom: 32 times
Digital zoom: 12-fold
Image enhancements: Wide Dynamic Range (WDR), Backlight Compensation
Video formats: H.264, H.265
Video recordings: Color, Full HD, SD
Audio formats: AAC-LC, ADPCM, PCM

Further properties
Scope of delivery: Operating instructions, mounting material, template
additional image resolution: 320 x 180 Pixel
