Performance
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Internal memory |
8000 MB |
| Internal memory type |
DDR3 UDIMM |
| Built-in processor |
Y |
| Processor frequency |
3 GHz |
Storage
| Hard drive capacity |
4000 GB |
| Number of hard drives installed |
2 |
| Total installed storage capacity |
8120 GB |
| Hard drive interface |
Serial ATA III |
Ports & interfaces
| Power over Ethernet (PoE) |
Y |
| eSATA |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| DC-in jack |
Y |
Power
| Power consumption (max) |
500 W |
Packaging content
| Quick installation guide |
Y |
Additionally
| Выход HDMI |
Y |
| AC adapter bundled |
Y |
Intel Core i5-4590S, 3 GHz, 6MB Cache, UDIMM 8GB 1600 MHz DDR3, HDD 8 TB, 538 x 438 x 44 mm, 10 kg

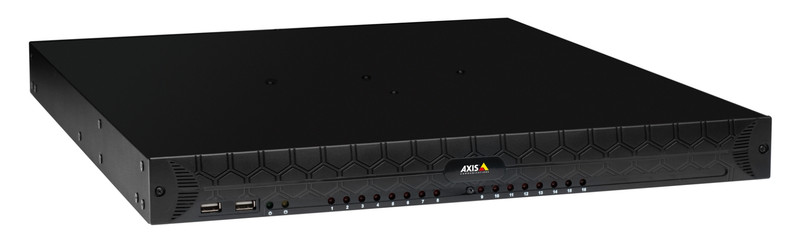

AXIS Camera Station S2016 is an out-of-the-box-ready compact surveillance appliance with an integrated manageable PoE switch and 8 TB storage (2x 4 TB). AXIS S2016 is preloaded with all necessary software and preconfigured to minimize installation time. Completed with cameras from Axis wide product portfolio and monitors, it forms an all-in-one solution for mid-sized installations up to 16 channels.
Easy to install all-in-one recorder
AXIS S2016 is designed for quick installation. The recorder comes with an integrated PoE switch. AXIS S2016 is preloaded with AXIS Camera Station video management software, 16-channel Universal licenses and other necessary system software. Completed with cameras from Axis wide product portfolio and monitors they form a plug and play solution for installations up to 16 channels.
Reliability and compatibility
Hardware components as well as storage capacity are validated to meet the demands for reliable high definition surveillance up to 4K Ultra HD. The solution is extensively tested to perfectly match our wide range of products. It also supports integration of third-party cameras.
First-class support
Support for multi-vendor solutions can be challenging when it comes to troubleshooting and product warranties. AXIS S20 Recorders include a 3-year hardware warranty and with Axis as the single point of contact, you can feel confident that any problem that may arise will be handled quickly and efficiently. Our team of over 100 highly experienced Technical Support engineers world-wide can provide you expert assistance wherever you are.
AXIS Camera Station for effective surveillance
AXIS Camera Station offers an intuitive user interface providing all necessary features for effective surveillance such as flexible live-view layout, site maps, powerful event configuration, efficient alarm management and responsive PTZ control. Quick investigation and retrieval of evidence for safe and secure export is enabled by intuitive timeline visualization and an efficient video search. AXIS S2016 supports connection of two screens for optimal system overview
