Data transmission
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
| Switching capacity |
1.6 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3 |
| Full duplex |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat3, Cat5 |
| Auto-sensing |
Y |
| 10G support |
N |
Power
| Input voltage |
10 - 60 V |
| Input current |
25 A |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-T, 10BASE-T |
Operational conditions
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating altitude |
0 - 3000 m |
Performance
| Mean time between failures (MTBF) |
2000000 h |
| Plug and Play |
Y |
Weight & dimensions
| Depth |
90 mm |
| Weight |
400 g |
| Width |
38 mm |
| Height |
89 mm |
Design
| DIN rail mounting |
Y |
| LED indicators |
Activity, Link, Status |
| Certification |
FCC Title 47 Part 15 Class A\nICES-003- Class A\nCE: EN61000-6-2:2001; ,EN61000-6-4:2001\nEN61000-4-2,3,4,5,6\nEN55011:1998+A1: 1999+A2: 2002 - Class A\nUL Listed (US and Canada) 1604\nANSI/ISA-12.12.01-2000,\nClass I, Div 2, Groups A,B,C,D,T4A;\nABS Type Approval for Shipboard Applications\nDNV Type Approval Certifi cation\nEN50155 for Railway Applications\nGOST-R Certifi ed; RoHS Compliant |
Additionally
| Operating temperature range (T-T) |
-40 - 70 °C |
| Colour of product |
Grey |

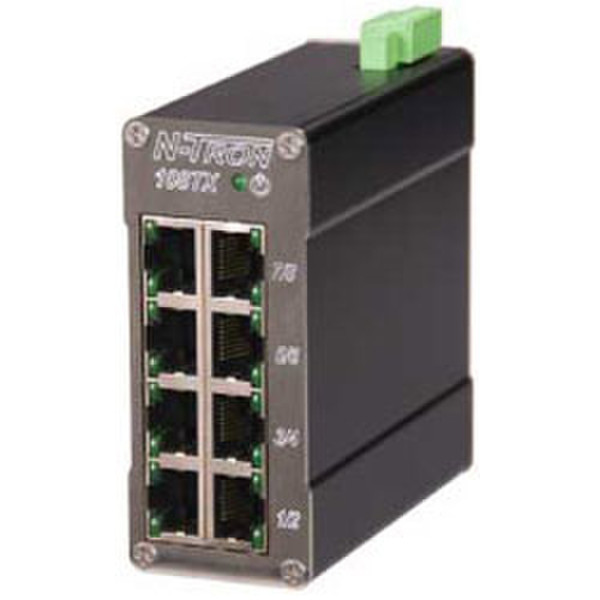

Fast Ethernet, 1.6Gb/s, 8xRJ-45, Cat3/Cat5, 10-60V, 250mA, 38x90x89mm, 400g, Grey
PRODUCT OVERVIEW
The 108TX industrial network switch is designed to meet the most demanding industrial communications requirements while providing high throughput and minimum downtime. The 108TX provides eight RJ-45 auto sensing 10/100BaseTX ports. All ports are full/half duplex capable, using "state of the art" Ethernet switching technology. The 108TX auto-negotiates the speed and flow control capabilities of the eight TX port connections, and confi gures itself automatically. Since the 108TX is auto sensing, there will be no need to make extensive wiring changes if upgrades are made to host computers, plant systems, or Ethernet I/O modules. The switching fabric simply scales up or down automatically to match specifi c network environments. The 108TX supports up to 2,000 MAC addresses, enabling these products to support extremely sophisticated and complex network architectures. The N-TRON 108TX is an ideal candidate for upgrading existing hubs and repeaters to increase bandwidth and determinism by virtually eliminating network collisions. The 108TX combines affordability and the plug & play simplicity of the unmanaged hub. The 108TX can simplify plant wiring by eliminating the need to bring data acquisition and control network connections back to a climate controlled environment. The 108TX has extended operating environmental
specifi cations to meet the harsh needs of the industrial environment. For cost savings and convenience the network switch can be DIN-Rail mounted alongside Ethernet I/O or other Industrial Equipment. To increase reliability the 108TX includes dual redundant power inputs. LEDs are provided to display the link status and activity of each port.
