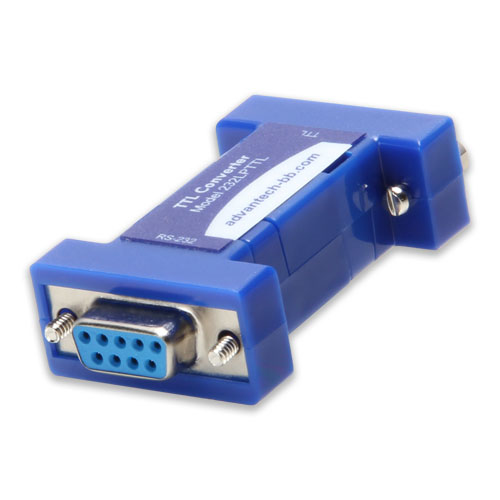

B&B Electronics 232LPTTL RS-232 TTL Blue serial converter/repeater/isolator

B&B Electronics 232LPTTL RS-232 TTL Blue serial converter/repeater/isolator

MPN: 232LPTTL
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Material

Housing material Plastic

Technical details

Output interface TTL
Baud rate 115.2 Kbit/s
Host interface RS-232
RS-232 signals CTS, GND, RD, RTS, TD
Connector 1 DB-9

Operational conditions

Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C

Weight & dimensions

Depth 52.9 mm
Weight 36.2 g
Width 33.3 mm
Height 17.4 mm

Certificates

Certification FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions, CE, EN 61000-6-1: 2007, EN 61000-4-2: 2009, EN 61000-4-3: 2006, EN 61000-4-4: 2012, EN 61000-4-6: 2009

Additionally

Colour of product Blue
Operating temperature range (T-T) 0 - 70 °C
Gender type Male/Female
RS-232 to TTL, DB9, Male/Female, 5V, 33.3x52.9x17.4mm, 36.2g, Plastic, Blue Port Powered TTL/RS-232 Converters

These non-isolated, four channel TTL/CMOS converters make easy connections between TTL equipment and RS-232 ports and run at a maximum baud rate speed of 115.2 kbps. All models convert two channels (TX and RX) in each direction (bi-directional) from TTL to RS-232. Use these converters with almost any micro controller or programmable logic controller that supports TTL. Model 232LPTTL converts RS-232 to 5VDC TTL/CMOS competitive levels. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels. Two channels are used to convert from RS-232 to TTL/CMOS signals and two channels are used to convert from TTL/CMOS signals to RS-232. These converters support TD, RD, RTS, and CTS. DB9S female connector on the RS-232 side. DB9P male connector on the TTL/CMOS side. This unit is powered from the RS-232 data and handshake lines, whether the lines are high or low.
