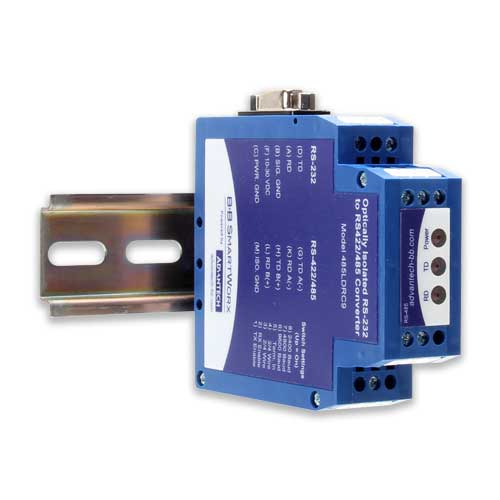

B&B Electronics 485LDRC9 RS-232 RS-485 Blue serial converter/repeater/isolator

RS-232 to RS-485, DB9 Female to Terminal Block, 115.2Kbps, 2kV Isolation, 10-30V, 0.5W, 24-14 AWG, IP20, Plastic, 25x79x95mm, Blue Industrial Isolated Converter

The 485LDRC9 is an optically isolated RS-232 to RS-422/485 converter. RS-232 signals interface through a DB9 female connector or a terminal block. RS-422/485 signals and power inputs connect to the terminal block. Terminal blocks are arranged to allow easy wiring inside a control panel. Built-in Automatic Send Data Control circuitry allows quick set-up and eliminates the need for external software drivers to control handshake signals. The converter operates on externally sourced 10-30 VDC power. Optically isolated data lines (2,000 V on input/output) with 500W surge suppression ensure that connected equipment is protected even in the harshest environments. DIN rail mount design snaps on standard 35mm rail and a small form factor fits neatly into tight cabinets. The 485LDRC9 is ideal for critical industrial communications, factory automation, in-cabinet conversion, warehouse automation, security, and many other applications.
