Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Number of trunks |
4 |
| Throughput |
14.88 Mpps |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| Auto MDI/MDI-X |
Y |
| Tagged VLAN |
Y |
| Spanning tree protocol |
Y |
| Networking standards |
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Y |
| Port-based VLAN |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| 10G support |
N |
Design
| Housing material |
Aluminium |
| DIN rail mounting |
Y |
| LED indicators |
Y |
| International Protection (IP) code |
IP30 |
| Certification |
FCC Class A, EN6100-4-2, -4-3, -4-4, EN6100-4-5, -4-6, EN60950, IEC60068-2-32, IEC60068-2-27, IEC60068-2-6 |
| Rack mounting |
N |
Power
| Input voltage |
12 - 48 V |
| Power consumption (typical) |
11.2 W |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Console port |
RS-232 |
| Fiber ports quantity |
4 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-FX, 1000BASE-TX, 10BASE-T |
Performance
| Packet buffer memory |
1 MB |
| Mean time between failures (MTBF) |
286945 h |
| Firmware upgradeable |
Y |
| Flash memory |
4 MB |
Security
| Security algorithms |
802.1x RADIUS |
Weight & dimensions
| Depth |
107 mm |
| Width |
74 mm |
| Height |
163 mm |
Operational conditions
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
Protocols
| Management protocols |
SNMP (v2, v2C, V3), Web GUI, TELNET, CLI. |
| Supported network protocols |
CSMA, CD |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Switch type |
Managed |
Optical fiber
| Fiber optic connector |
SFP |
Additionally
| Colour of product |
Blue |
| Operating temperature range (T-T) |
-10 - 60 °C |
Managed, Gigabit Ethernet, 4xRJ-45, 4xSFP, 14.88Mpps, 8K MAC, 12-48V, 11.2W, IP30, Aluminium, 74x107x163mm, Blue
ETHERNET GIGABIT SWITCHES - REDUNDANT, ULTRA-FAST RECOVERY, EASY CONFIGURATION
Elinx EIR500 and EIR600 managed gigabit switches provide powerful functionality in an IP30 DIN mount package. If an Industrial gigabit Ethernet switch is required, choose a product from the EIR600 series.

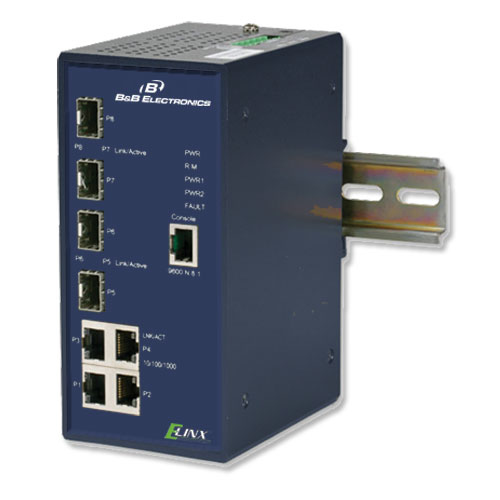

8 Port Managed GB Industrial Ethernet Switches
The Elinx EIR608-xSFP series Industrial Gigabit Managed Ethernet Switches provide powerful functionality in a small package Designed for industrial applications, these switches contain all the standard features of other switches, such at IGMP Snooping, Port Based VLAN, 802.1Q Tag VLAN, RJ-45 automatic MDI/MDI-X, auto negotiation, store and forward switching, STP, RSTP, Web Based Management, Ingress Packet Filtering, and Egress Rate Control. These managed switches also come with important industrial features to ensure reliability in an industrial application. X-Ring technology with coupling ring and dual homing allows automatic recovery in less than 300 MS. Dual power inputs ensure reliability. A relay alarm output for port failure notification. DIN Rail and Panel Mounting options on the same IP30 case. Another important feature is automatic e-mail notification for system events such as a cold start, change in network topology, power status or SNMP authentication failure. The EIR608-xSFP is also Gigabit capable and comes with 2 or 4 SFP ports which allow the addition of fiber optic ports.
