Networking
Cabling technology |
10/100Base-T(X) |
Performance
Auto MDIX IEEE |
Y |
Full duplex |
Y |
Power over Ethernet (PoE) |
Y |
Maximum transfer distance |
100 m |
Type |
Network transmitter & receiver |
Data transfer rate |
100 Mbit/s |
Additionally
On/Off switch |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

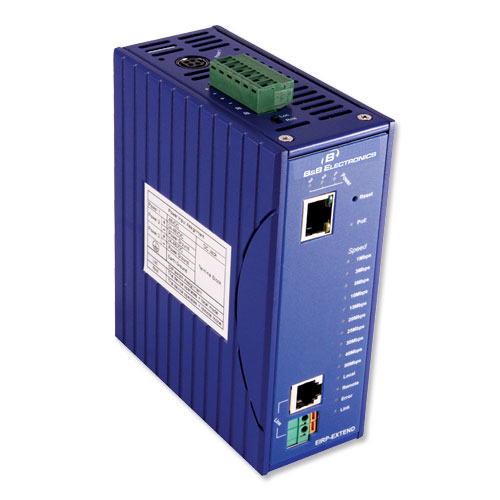

Copper Ethernet Extender, PoE, 50 Mbps, 320 ft, 38.4 W
Copper Ethernet Extenders, Ethernet Switch, PoE+ Ports
The EIRP series of PoE Ethernet extenders offer built-in PoE+ technology which allows the end device, such as an IP camera, to be powered directly from the extended Ethernet port.
Buy and compare our PoE Ethernet copper extenders below. Click on each model number to view a photo and see the Details, Specs, Downloads, and Application tabs for further information.
Extending Ethernet to reach IP cameras, IP phones, and Ethernet connected control devices is simple and reliable with B&B Electronics’ PoE Ethernet extenders.
Low cost and ease of use are two great benefits, since the Ethernet signal is extended over existing copper wire (typically telephone wire or Cat5 cable). Enjoy high-speed Ethernet connections ranging from 1Mbps to 50Mbps (depending on the application’s distance requirements). A maximum distance of 1,900 meters can be achieved with these extender devices – that’s 19 times greater than the distance of a standard Ethernet port!
Features/Benefits
- Operates transparently to higher layer protocols
- EIRP models are equipped with PoE+ ports capable of powering cameras and other PoE devices
- Ruggedized for extreme applications
- Easy setup via a single DIP switch (Local or Remote) setting
- Status LED’s for monitoring and connection status
- Meets heavy industrial EN61000-6-2 EMC standards
- IEC600068-2-27 (shock) and 600068-2-6 (vibration) tested
- Meets NEMA TS1/TS2 requirements for traffic control equipment
- Wide operating temperature -40 to 75°C, (tested at -40 to 85°C)
- Redundant wide voltage inputs 24 to 48VDC, via terminal block
- DIN rail mount or panel mount with optional adapter (Model EIRPMKT)
