Data transmission
| MAC address table |
2000 entries |
| Store-and-forward |
Y |
Optical fiber
| Fiber type |
Multi-mode |
| Transmission distance (max) |
2 km |
| Fiber ethernet cabling technology |
100BASE-FX |
| Fiber optic connector |
ST |
| Wavelength |
1310 nm |
Design
| Housing material |
Metal |
| DIN rail mounting |
Y |
| LED indicators |
Y |
| International Protection (IP) code |
IP30 |
| Certification |
CE, FCC, RoHS, UL/cUL Class I Div 2 Groups A,B,C, and D |
| Rack mounting |
N |
Networking
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Flow control support |
Y |
| Full duplex |
Y |
| 10G support |
N |
Power
| Input voltage |
10 - 36 V |
| Power consumption (typical) |
4 W |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Fiber ports quantity |
4 |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-T, 10BASE-T |
Performance
| Packet buffer memory |
0.064 MB |
| Mean time between failures (MTBF) |
200000 h |
Operational conditions
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 75 °C |
Weight & dimensions
| Depth |
105 mm |
| Width |
44 mm |
| Height |
130 mm |
Power over Ethernet (PoE)
| Power protection features |
Reverse polarity |
Additionally
| Colour of product |
Blue |
| Operating temperature range (T-T) |
-10 - 60 °C |
Unmanaged, 10/100BaseT(X), 65Kb Packet Buffer Memory, 2K MAC Adress, LED, 10-36V, 4W, 200000h MTBF, 44x105x130mm, Multi-mode, 2km, 4xRJ-45, 4xST, 35dBm, Blue

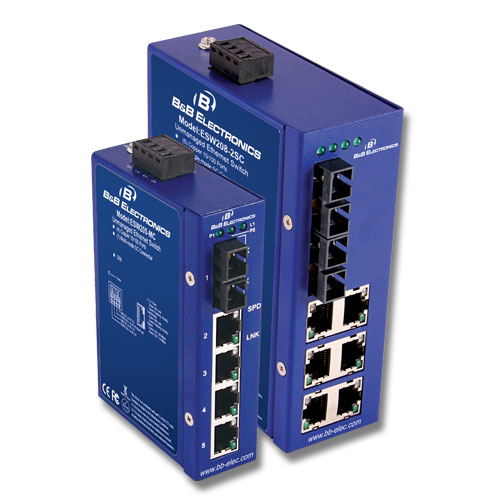

HEAVY INDUSTRIAL GRADE, UNMANAGED, 10/100 ETHERNET SWITCHES WITH FIBER OPTION
B&B Electronics' Heavy Industrial certified unmanaged 4, 5, 6, and 8 port Ethernet fiber switches, the ESW200 series, were designed with harsh environment applications in mind. These switches are industrial hardened for rugged, noisy, dirty, applications such as: wind power, traffic control, water management, industrial automation, SCADA, building control, warehousing and more. Features include shock, vibration tested, broadcast storm protection, dual AC, DC power inputs, and hardened IP30 enclosure with Din-rail or panel mounts.
