Technical details
| RX sensitivity |
-32 dB |
| Output interface |
Fiber (SC) |
| Baud rate |
115.2 Kbit/s |
| Isolation |
2 kV |
| Transmission distance (single-mode) |
15 km |
| RS-485 signals |
Data+, Data-, GND |
| Host interface |
RS-232/422/485 |
| Mounting |
DIN-rail |
| RS-232 signals |
GND |
| Wavelength |
1310 nm |
Operational conditions
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
Weight & dimensions
| Depth |
97 mm |
| Weight |
149.7 g |
| Width |
128 mm |
| Height |
28 mm |
Certificates
| Certification |
UL 508, File Number: E222870, FCC Part 15, CISPR, EN 55022: 2010 + AC:2011, CE, EN 61000-6-1: 2007, EN 61000-4-2: 2009, EN 61000-4-3: 2006, EN 61000-4-4: 2012, EN 61000-4-6: 2009 |
Additionally
| Colour of product |
Blue |
| Operating temperature range (T-T) |
-40 - 80 °C |
RS 232/422/485 to SC, 1310nm, 10-48V, 115.2Kbit/s, 128x97x28mm, 149.7g, Blue

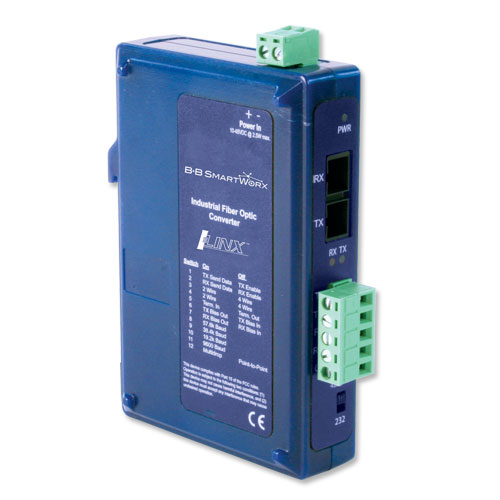

FOSTCDRI-SC
B&B Electronics’ ILinx fiber converters designed with functionality required for heavier industrial environments. Model FOSTCDRi-Sx industrial-grade isolated converter changes RS-232, RS-422, or RS-485 to single-mode fiber optics. Designed for industry, FOSTCDRi-Sx extends serial data ranges up to 15 km (9 mi) and provides the most versatile connection possible between asynchronous full or half-duplex serial equipment. In addition to direct point-to-point connectivity, it is capable operating in a multi-drop mode. This allows one serial device to communicate with up to 31 others around a fiber optic ring. Since it supports mixed serial standards, it can replace other converters and isolators and add the EMI/RFI immunity inherent to fiber optic communications. Fiber optic connectors are SC or ST. B&B Electronics’ Automatic Send Data Control circuit controls the RS- 422/485 driver chip, eliminating the requirement for special software. Easy to install and configure, it has a 12-position DIP switch to set up the RS-422/485 parameters and removable terminal blocks to connect serial signals and power. In RS-232 mode, the FOSTCDRI-SC supports Transmit Data and Receive Data. Handshaking signals are not passed through.
