Networking
| Cabling technology |
10/100BaseT(X) |
| Compliance industry standards |
IEEE 802.11n |
Features
| LED indicators |
Y |
| Power LED |
Y |
| Wall mountable |
Y |
Antenna
| Antenna type |
2x2 MIMO |
| Antenna gain level (max) |
15 dBi |
Power
| Power over Ethernet (PoE) |
Y |
Wireless LAN features
| Outdoor range |
15km |
| Frequency band |
5.470 – 5.825 GHz |
Additionally
| Transfer rate (Mbps) |
150 Mbit/s |
| Wireless technologies |
Wireless |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Wireless, 5 GHz, 15dBi, 802.11n, 2x2 MIMO, 150Mbps, 15km Max, RJ45, WPA2, PoE Adapter

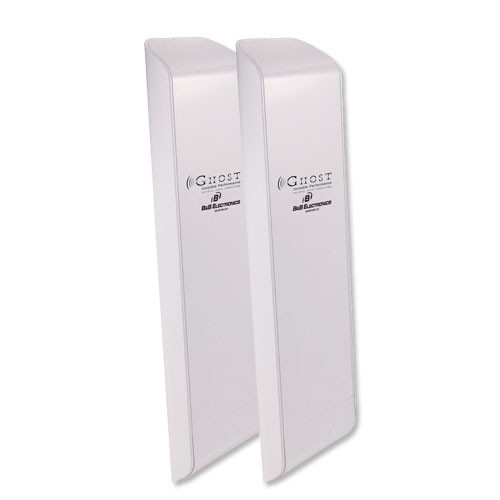

GhostBridge Wireless Ethernet Bridge – Zero-Setup, Secure
Zero Set-up
No configuration necessary! Simply plug in, aim until the LED's show the best signal strength and you're done. With the GhostBridge Wireless Ethernet Bridge, you'll achieve blazing link speeds up to 150Mbps - performance that will make you wonder why you ever ran cables in the first place!
All settings are preconfigured for a true out-of-the-box plug and play experience. Simply unplug your existing Ethernet cable and create a wireless point-to-point link between devices or networks.
High-Speed
Ultra high-speed and long range makes the wireless link seamless. With over-the-air speeds of up to 150Mbps, you won't experience latency or throughput bottlenecks.
Long Range
The 5 GHz radio is built from 802.11n 2x2 MIMO technology combined with the integrated 80 degree, 15dBi sector antenna you get incredible range. Line-of-sight distances of up to 15km are possible.
Secure
The GhostBridge Wireless Ethernet Bridge is configured out-of-the box with WPA2, 128-bit security for highly secure point-to-point operation. No software setup required. Outdoor rated enclosure for hardware protection, too.
No additional parts or accessories needed.
- Shipped in preconfigured pairs
- Antenna is integrated in housing.
- Pole mount is part of molded outdoor enclosure.
- No power supply required with the included power-sourcing PoE adapter.
GhostBridge Wireless Ethernet Bridge Features & Benefits
- Point and play set-up allows the unit to start transmitting within a few minutes - indoors or outdoors
- Ultra high-speed -- up to 150 Mbps
- Long Range -- up to 15km
- WPA2, 128-bit security provides data-safe operation
- License Free - 5 GHz radio, 2x2 MIMO technology...no low-tech proprietary RF chipset!
GhostBridge Wireless Ethernet Bridge Applications
Create a transparent, secure, high-speed link between remote stations and a central office. Bridge two networks or hard-to-reach nodes together. Connect remote devices (IP camera, or other) to a LAN. Replace expensive cables that are prone to damage in harsh environments.
