Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
1.6 Gbit/s |
| Jumbo frames |
2048 |
Networking
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support |
Y |
| DHCP client |
Y |
| 10G support |
N |
| Full duplex |
Y |
Design
| Housing material |
Metal |
| DIN rail mounting |
Y |
| LED indicators |
Y |
| International Protection (IP) code |
IP30 |
| Certification |
UL Class 1 Division 2 Groups A,B,C,D; ATEX Zone 2 (pending); IECEx (pending), UL508, FCC Part 15 Subpart B Class A, EN 55011/55022, Class A, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Wall mountable |
Y |
Power
| Input voltage |
12 - 48 V |
| Power consumption (typical) |
3.6 W |
Optical fiber
| Transmission distance (max) |
0.1 km |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-T, 10BASE-T |
Performance
| Packet buffer memory |
0.128 MB |
| Mean time between failures (MTBF) |
5235270 h |
Operational conditions
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Storage relative humidity (H-H) |
10 - 95% |
Weight & dimensions
| Depth |
120 mm |
| Width |
43 mm |
| Height |
84 mm |
Management features
| Quality of Service (QoS) support |
Y |
| Switch type |
Unmanaged |
Power over Ethernet (PoE)
| Power protection features |
Over current, Reverse polarity |
System requirements
| Compatible operating systems |
32-bit/64-bit Windows XP/Vista/7, Windows Server 2003/2008/2008 R2 |
Additionally
| Colour of product |
Blue |
| Transfer rate (Mbps) |
100 Mbit/s |
| Jumbo Frames support |
Y |
| Operating temperature range (T-T) |
-40 - 75 °C |

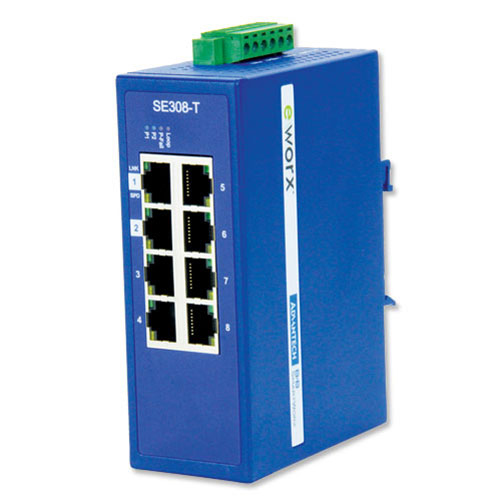

Unmanaged, 8xRJ-45, Fast Ethernet, 1.6Gbit/s, 2048 Jumbo Frames, IP30, 12-48V, 3.6W, 43x120x84mm, Blue
DETAILS
SE300 series is the industry’s first design for Ethernet Green, IEEE802.3az - Energy Ethernet switches that cut power usage by up to 60%, significantly saving energy usage in the field and reducing total cost of ownership over 24/7.
Advantech B+B SmartWorx SE300 series monitored switches can be used as plug-and-play unmanaged switches right out of the box. Installing the iView2 Network Management Software gives them basic monitoring and management capabilities as well. They bridge the gap between unmanaged switches and significantly more expensive, fully managed solutions. When enabled with iView2, these switches provide IP address assignment, allowing for a static IP address or an address that is discoverable via DHCP in the network. Then, these switches have the ability to use Modbus/TCP to communicate with HMI/SCADA software and SNMP to communicate with NMS (Networking Management Software) at the same time. This gives full access control to both control engineers and IT managers.
