Operational conditions
| Storage temperature (T-T) |
-40 - 85 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Operating relative humidity (H-H) |
10 - 95% |
Networking
| Cable types supported |
Cat5e, Cat6 |
| Auto-sensing |
Y |
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Packaging data
| Mounting brackets included |
Y |
| Wall mounting kit |
Y |
| Quick start guide |
Y |
Design
| DIN rail mounting |
Y |
| LED indicators |
Y |
| International Protection (IP) code |
IP30 |
| Housing material |
Metal |
| Certification |
s UL Class 1 Division 2 Groups A,B,C,D; ATEX Zone 2 (pending); IECEx (pending, UL508, FCC Part 15, EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| Wall mountable |
Y |
Optical fiber
| Fiber optic connector |
SFP |
| Fiber ethernet cabling technology |
1000BASE-LHX, 1000BASE-SX, 1000BASE‑LX, 1000BASE‑ZX |
Performance
| Auto-negotiation |
Y |
| Buffer size |
4100 KB |
| Mean time between failures (MTBF) |
2825281 h |
| Plug and Play |
Y |
Ports & interfaces
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-TX, 10BASE-T |
| Combo SFP ports quantity |
2 |
Weight & dimensions
| Width |
74 mm |
| Height |
84 mm |
| Depth |
120 mm |
Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
7.2 Gbit/s |
| Jumbo frames |
9126 |
Power
| Input voltage |
12 - 48 V |
| Power consumption (typical) |
8.2 W |
| Redundant power supply (RPS) support |
Y |
Protocols
| Management protocols |
iView2 , LLDP, SNMP v1/v2c, Modbus/TCP |
Management features
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power protection features |
Over current, Reverse polarity |
Additionally
| Jumbo Frames support |
Y |
| Colour of product |
Blue |
| Operating temperature range (T-T) |
-40 - 75 °C |

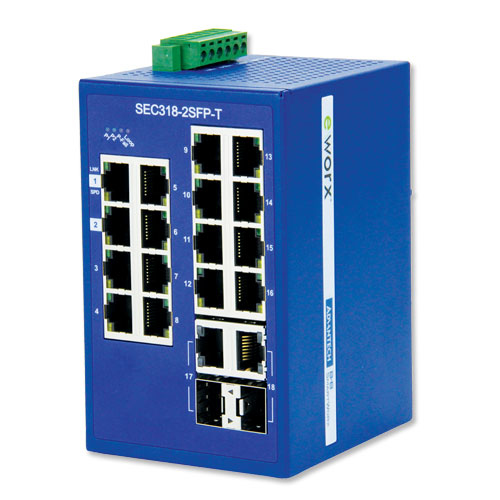

Monitored, 16xRJ45, 2xCombo SFP, 8000 MAC, 7.2Gbit/s, 9126 Jumbo Frames, 12-48V, 8.2W, 74x120x84mm, Blue
BRIDGING THE GAP BETWEEN MANAGED AND UNMANAGED SWITCHES
- Built-in Modbus & SNMP features which offer the ability to remotely monitor and analyze network status
- Lite Management for small scale/edge networks needing remote data collection, diagnostics, real time data acquisition.
- IEEE802.3az - Energy Efficient Ethernet
- Operates in a wide temperature range (-40° to 75°)
- Designed for hazardous locations: UL C1D2, ATEX Zone 2 (pending), IECEx (pending)
- iView2 Management Software gives network managers the ability to monitor and manage eWorx SE300 series switches from a central location.DETAILS
Details
SE300 series is the industry’s first design for Ethernet Green, IEEE802.3az - Energy Ethernet switches that cut power usage by up to 60%, significantly saving energy usage in the field and reducing total cost of ownership over 24/7.
Advantech B+B SmartWorx SE300 series monitored switches can be used as plug-and-play unmanaged switches right out of the box. Installing the iView² Network Management Software gives them basic monitoring and management capabilities as well. They bridge the gap between unmanaged switches and significantly more expensive, fully managed solutions.
When enabled with iView2, these switches provide IP address assignment, allowing for a static IP address or an address that is discoverable via DHCP in the network. Then, these switches have the ability to use Modbus/TCP to communicate with HMI/SCADA software and SNMP to communicate with NMS (Networking Management Software) at the same time. This gives full access control to both control engineers and IT managers.
