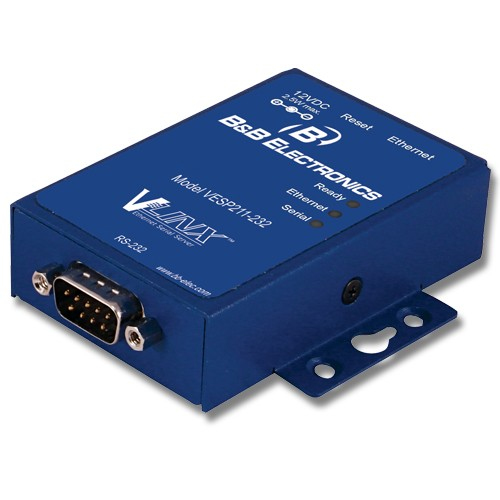

B&B Electronics VESP211-232 RS-232 serial server

Ethernet Mini Serial Server, RS-232, DB9M, 1 x RJ-45, 10/100BaseT Fits In The Palm Of Your Hand

Low cost, great for entry level applications

Little products, big performance. These ultra-compact RS-232, RS-422/485, and RS-232/422/485 (MEI) to Ethernet converters fit almost anywhere. They measure only 5.1 x 7.6 x 2.5 cm (2.0 x 3.0 x 1.0 in).

Installation and configuration is quick and easy with the Vlinx Manager software provided on CD ROM. The software is compatible with Windows 2000, XP, Server2003, Vista, Server2008, and 7.

Powered from a 12 VDC power supply (included with the unit). Operates in Virtual COM, direct IP, or paired modes.

Features & Benefits

- Ultra-compact design fits in the tightest of places
- Easy to use and configure
- Connect legacy or new serial devices to your Ethernet network
- Wide operating temperature (-40 to 80°C)
- Compact, IP30, panel mountable metal case

Additional Specifications

- IEEE 802.3u 10/100BaseT, auto-detecting
- Supports TCP Server, TCP Client, or UDP
- TCP Probe – automatically restores connections in Virtual COM mode
- Supports direct IP, Paired, or Virtual COM modes
- RS-232/422/485 data rates up to 230 Kbps
