Ports & interfaces
| DC-in jack |
Y |
| VGA (D-Sub) output ports |
1 |
| Audio (L,R) out |
1 |
| 3.5 mm (1/8-inch) out |
Y |
Networking
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band |
2.4 & 5 GHz |
| Maximum operating distance |
30 m |
Features
| Smartphone remote support |
Y |
| Maximum frame rate |
30 fps |
| Maximum resolution (HDMI) |
1440 x 900 pixels |
| Number of users |
2 user(s) |
| Maximum resolution (VGA) |
1920 x 1080 pixels |
Power
| Power consumption (max) |
9.7 W |
| Input voltage |
5 V |
System requirements
| Mobile operating systems supported |
iOS 9.0, iOS 8.0 |
| Mac compatibility |
Y |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
Antenna
| Antennas quantity |
2 |
| Antenna type |
External |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
IEEE 802.11a/b/g/n, 300Mbps, 30fps, 2.4 & 5 GHz, HDMI, VGA, 2x USB, RJ-45, Line Out
ClickShare makes connecting to the meeting room’s video system a matter of clicking a button. This one click wonder not only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively. This is done using the unique ClickShare Button, or by installing a simple app to share content from an Android or iOS smartphone or tablet. The result is enhanced meeting efficiency and better decision-making.
<b>Instantly on screen, using any device

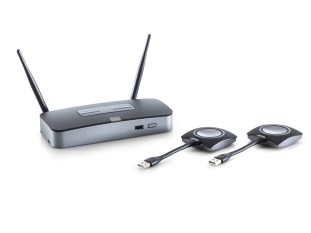

</b>A ClickShare CSM-1 set consists of two USB-powered devices (the ‘ClickShare Buttons’) and a Base Unit. The Base Unit has a fixed connection to the meeting room’s visualization system, and takes care of all the needed processing. Users who want to get their presentation on the large meeting room screen, simply connect a Button to their PC or MAC. They start the application, click the ClickShare Button and immediately their desktop is wirelessly transferred to the large visualization system. Alternatively, when using a smartphone or tablet (either iOS or Android-powered), a simple app allows you to share content as well. A maximum of two people can show their content on-screen simultaneously.
<b>A new meeting dynamic
</b>ClickShare changes the way you meet. Instead of focusing on one presenter, ClickShare encourages all attendees to participate. By showing visual content on the large meeting room screen, it becomes easier for everybody to prove their point. The system's stability and ease-of-use, also drastically limits the number of needed interventions by the IT department.
