Display
| Viewable size, horizontal |
654 mm |
| Viewable size, vertical |
409 mm |
| Viewable size diagonal |
772 mm |
| Digital vertical frequency |
15 - 80 Hz |
| Digital horizontal frequency |
30 - 150 kHz |
| HDCP |
N |
| Native aspect ratio |
16:10 |
| HD type |
Not supported |
Ports & interfaces
| USB hub version |
USB 2.0 |
| USB Type-A downstream ports quantity |
4 |
| DVI-D ports quantity |
2 |
Ergonomics
| On Screen Display (OSD) |
Y |
| Power LED |
Y |
| Number of OSD languages |
5 |
| Tilt angle |
-5 - 25 ° |
Multimedia
| Built-in camera |
N |
| TV tuner integrated |
N |

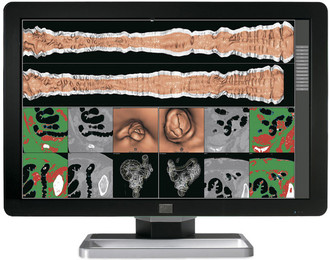

MDCC-6130, 77.216 cm (30.4 ") LCD, 3280x2048, 16:10, 800cd/m2, 18ms, 1000:1, USB 2.0, 26.9kg, black/silver
Coronis Fusion 6MP DL is an ingenious PACS display system designed to further enhance flexibility and productivity in diagnostic imaging.
Enhanced viewing comfort
Featuring the industry’s first 30-inch color LCD that can be used as two seamless 3 MegaPixel heads or one wide-screen 6 MegaPixel display, Coronis Fusion 6MP DL offers you the freedom to organize your workspace just the way you want it. It allows you to read CT, MR, cath and echo cardiogram images, or any other combination, side by side on a single diagnostic screen.
A perfect view from every angle
Coronis Fusion 6MP DL features the latest, breakthrough In-Plane Switching (IPS-Pro) LCD technology. This technology brings the most advanced LCD viewing characteristics on the market, setting new standards for brightness and contrast, even from a wide viewing angle.
Coronis Fusion 6MP DL has 510(k) clearance from the US Food and Drug Administration and is available for commercial distribution worldwide.
Multi-modality PACS imaging
The Diagnostic Luminance system delivers a DICOM-calibrated luminance of 800 cd/m², allowing for simultaneous reading of color, grayscale and fused modalities. Coronal views, for instance, can now be combined with smaller MIPS and volume rendered images on the same screen to facilitate diagnostic decisions.
Diagnostic precision
The integrated ULT of Coronis Fusion 6MP DL distributes the brightness equally over the entire 30-inch screen surface. Supported by an intelligent backlight design, this reduces non-uniformities caused by the LCD as well as the backlight to less than 10%. As a result, all images comply perfectly to the DICOM standard, no matter where they are positioned on the screen.
Automated Quality Assurance
The latest version of MediCal QAWeb, combined with the unique I-Guard sensor, ensures fully automated image Quality Assurance with no need for human intervention. MediCal QAWeb tracks, maintains and logs viewing performance, automates QA tasks, initiates display system calibration and establishes an accurate DICOM Look-Up Table calibration.
Increased performance
The new Coronis Fusion 6MP DL display system is driven by a high-speed MXRT display controller, specifically designed to support 3D PACS applications with 30-bit color precision. As a result, Coronis Fusion 6MP DL is ready for the latest 3D CT, MR and PET applications in combination with standard 2D PACS reading.
