Weight & dimensions
| Depth |
144 mm |
| Weight with stand |
12300 g |
| Width (with stand) |
488 mm |
| Width |
488 mm |
| Height |
382 mm |
| Depth (with stand) |
249 mm |
| Height (with stand) |
532 mm |
Display
| Display surface |
Matt |
| Display diagonal |
21.3 " |
| Viewable size, horizontal |
432 mm |
| Viewable size, vertical |
324 mm |
| Viewable size diagonal |
541 mm |
| Response time |
32 ms |
| Native aspect ratio |
4:3 |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170 ° |
| Viewing angle, vertical |
170 ° |
| Pixel pitch |
0.154 x 0.154 mm |
| Display brightness |
1100 cd/m² |
| Display technology |
IPS |
| 3D |
N |
| Supported graphics resolutions |
2800 x 2100 |
| Aspect ratio |
4:3 |
| Display |
LCD |
Ports & interfaces
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| DisplayPorts quantity |
2 |
| DC-in jack |
Y |
Power
| Power consumption (typical) |
78 W |
Ergonomics
| VESA mounting |
Y |
| Height adjustment |
Y |
| VESA mounting interfaces |
100 x 100 mm |
Multimedia
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
N |
Certificates
| Certification |
UL, CSA, CE, DEMKO, CCC, BSMI, KCC, VCCI, FCC, FDA, RoHS |
Additionally
| Colour of product |
Grey |
| On/Off switch |
Y |
5 MegaPixel diagnostic grayscale display system, TFT AM LCD Dual Domain IPS, 4:3, 5MP, 1000:1, 32 m, DVI, Display Ports, 78W, +MXRT-5550

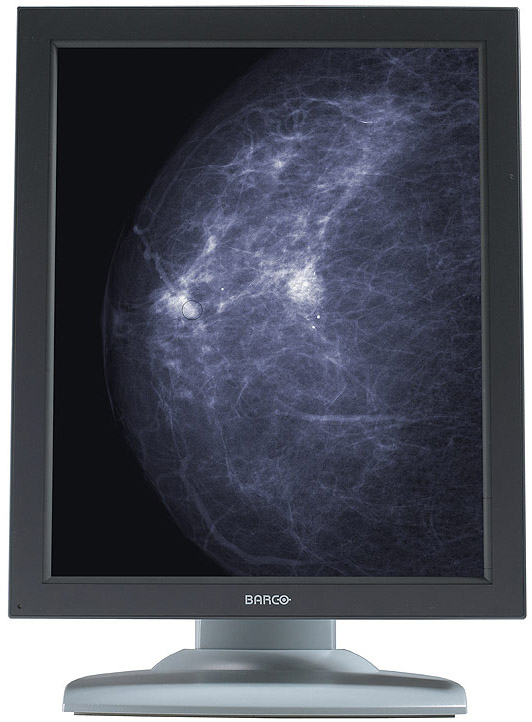

Nio 5MP (MDNG-6121) is a flexible diagnostic display system with a resolution of 2800 x 2096. Thanks to its high luminance and contrast, Nio 5MP is a perfect solution for a wide range of medical imaging applications, such as X-ray, PACS, MRI, angiography, computed tomography and mammography on PACS.
High-quality imaging
The Nio 5MP brings high brightness, exceptional crispness and an excellent viewing angle to your readings. Backlight Output Stabilization (BLOS) technology guarantees fast power-up and continuously stabilizes the luminance output of the LCD’s backlight.
Fully transparent calibration and QA
Barco's Nio 5MP is bundled with MediCal QAWeb for automated DICOM calibration, Quality Assurance, display asset management, problem solving and reporting, guaranteeing maximum diagnostic confidence and uptime of your PACS display systems.
The Nio 5MP display system includes:
- A 5 MegaPixel flat panel display
- MediCal QAWeb software for automated calibration and Quality Assurance
- A high-speed, high-performance display controller: check the compatibility matrix
