Display
| Sync-on-green (SOG) |
Y |
| Separate H/V sync |
Y |
| Vertical scan range |
59 - 61 Hz |
| Viewable size, horizontal |
518 mm |
| Viewable size, vertical |
324 mm |
| Composite sync |
Y |
| Native aspect ratio |
16:10 |
| HD type |
Full HD |
Other features
| Dot clock scanning frequency |
165 MHz |
Ports & interfaces
| USB hub version |
USB 2.0 |
| USB Type-A downstream ports quantity |
3 |
| DisplayPorts quantity |
1 |
| DVI port |
Y |
Ergonomics
| Swivel angle range |
-45 - 45 ° |
| Height adjustment |
100 mm |
| Swivelling |
Y |
| Number of OSD languages |
10 |
| On Screen Display (OSD) |
Y |
| Height adjustment |
Y |
| Pivot |
Y |
| Pivot angle |
0 - 90 ° |
| Tilt adjustment |
Y |
| Tilt angle |
-5 - 40 ° |
Multimedia
| TV tuner integrated |
N |
| Built-in camera |
N |
Additionally
| Ethernet LAN connection |
N |
| Energy efficiency compliance |
Unspecified |
| Display scan frequency (horizontal) |
31.5 - 79.95 kHz |
61.214 cm (24.1 ") IPS, 1920 x 1200, 16:10, 400 cd/m2, 1000:1, 24ms, DVI, DisplayPort, 2 x USB downstream, 1 x USB upstream

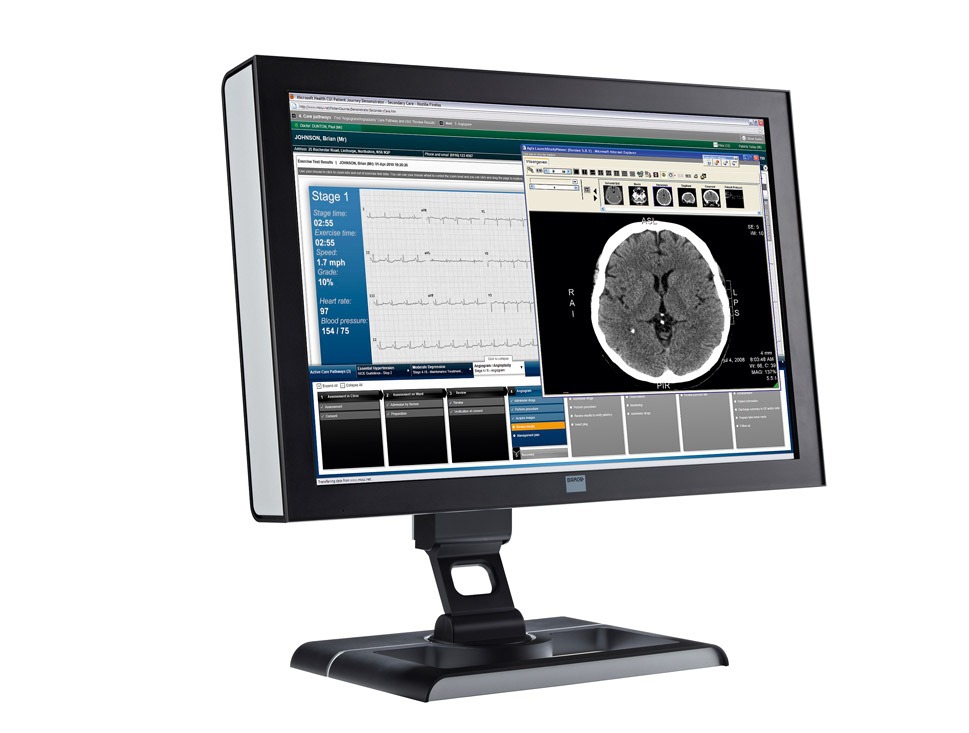

The MDRC-2124 is a 24-inch wide-screen clinical review display for everyday use at the point of care. The 24-inch monitor brings high-quality, calibrated and remotely managed images to specialists throughout the hospital.
Consistent, calibrated images at the point of care
The MDRC-2124's high-quality LCD panel provides high brightness, rich contrast and accurate display of colors and grayscales. The wide 24-inch screen creates a flexible workspace and is ideally suited for simultaneous use of multiple applications and palettes.
Advanced Backlight Output Stabilization (BLOS) technology ensures stabilized luminance over time.
Thanks to the DICOM Part 14 Look-Up Table, the MDRC-2124 is DICOM-compliant "out-of-the-box".
User-friendly Quality Assurance
The MDRC-2124 is shipped with Medical QAWeb software for accurate Quality Assurance and remote display management (hardware calibration can be performed by means of an external sensor).
