Weight & dimensions
| Width |
488 mm |
| Weight |
8500 g |
| Weight with stand |
12300 g |
| Depth |
114 mm |
| Width (with stand) |
488 mm |
| Height |
382 mm |
| Depth (with stand) |
249 mm |
| Height (with stand) |
532 mm |
Display
| Native aspect ratio |
4:3 |
| Display diagonal |
21.3 " |
| Vertical scan range |
45 - 85 Hz |
| Viewable size, horizontal |
432 mm |
| Viewable size, vertical |
324 mm |
| Viewable size diagonal |
541 mm |
| HD type |
Full HD |
| Response time |
32 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
170 ° |
| Viewing angle, vertical |
170 ° |
| Pixel pitch |
0.1540 x 0.1540 mm |
| Display brightness |
1100 cd/m² |
| Display technology |
IPS |
| Aspect ratio |
4:3 |
| Display |
LCD |
Packaging content
| Cables included |
DVI, USB |
| Bundled software |
MediCal QAWeb |
| Quick start guide |
Y |
Ports & interfaces
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| USB hub version |
USB 2.0 |
| USB Type-A downstream ports quantity |
3 |
Ergonomics
| Pivot |
Y |
| VESA mounting |
Y |
| Height adjustment |
Y |
| Swivel angle range |
-45 - 45 ° |
| VESA mounting interfaces |
100 x 100 mm |
| Height adjustment |
60 mm |
| Swivelling |
Y |
| Number of OSD languages |
1 |
| Pivot angle |
0 - 90 ° |
| Tilt adjustment |
Y |
| LED indicators |
Y |
| On Screen Display (OSD) languages |
ENG |
| On Screen Display (OSD) |
Y |
| Tilt angle |
-5 - 30 ° |
Power
| Power consumption (typical) |
78 W |
| AC input frequency |
50/60 Hz |
Multimedia
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
N |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 80% |
| Non-operating altitude |
0 - 7500 m |
| Operating altitude |
0 - 3000 m |
Certificates
| Certification |
UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, CCC - GB9254-2008 + GB4943-2001 + GB17625.1-2003, BSMI - CNS13438(95) + CNS14336(94), KCC, VCCI, FCC class B, FDA 510K |
| Compliance industry standards |
RoHS |
Packaging data
| Package depth |
675 mm |
| Package weight |
15200 g |
| Package width |
500 mm |
| Package height |
320 mm |
Additionally
| Display scan frequency (horizontal) |
30 - 124 kHz |
| Colour of product |
Grey |
| Ethernet LAN connection |
N |
| AC adapter bundled |
Y |
| Energy efficiency compliance |
Unspecified |
| Operating temperature range (T-T) |
0 - 40 °C |
54.102 cm (21.3 ") TFT AM LCD Dual Domain IPS, 2800 x 2096, 4:3, 1100 cd/m², CR 1000:1, 32 ms, DVI-D Dual Link, 3 x USB 2.0

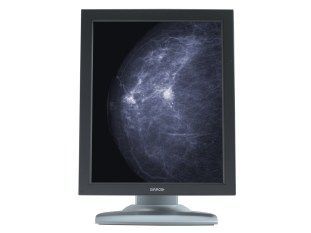

Nio 5MP (MDNG-6121) is a flexible diagnostic display system with a resolution of 2800 x 2096. Thanks to its high luminance and contrast, Nio 5MP is a perfect solution for a wide range of medical imaging applications, such as X-ray, PACS, MRI, angiography, computed tomography and mammography on PACS.
High-quality imaging
The Nio 5MP brings high brightness, exceptional crispness and an excellent viewing angle to your readings. Backlight Output Stabilization (BLOS) technology guarantees fast power-up and continuously stabilizes the luminance output of the LCD’s backlight.
Fully transparent calibration and QA
Barco's Nio 5MP is bundled with MediCal QAWeb for automated DICOM calibration, Quality Assurance, display asset management, problem solving and reporting, guaranteeing maximum diagnostic confidence and uptime of your PACS display systems.
The Nio 5MP display system includes:
- A 5 MegaPixel flat panel display
- MediCal QAWeb software for automated calibration and Quality Assurance
- A high-speed, high-performance display controller: check the compatibility matrix
