Other features
| Video Dot Rate |
280 MHz |
| Placement supported |
Horizontal/Vertical |
Display
| Display diagonal |
21.3 " |
| Vertical scan range |
24 - 100 Hz |
| Viewable size, horizontal |
433 mm |
| Viewable size, vertical |
325 mm |
| Viewable size diagonal |
540 mm |
| HD type |
Full HD |
| Response time |
40 ms |
| Native aspect ratio |
4:3 |
| Contrast ratio (typical) |
1400:1 |
| Viewing angle, horizontal |
176 ° |
| Viewing angle, vertical |
176 ° |
| Pixel pitch |
0.2155 x 0.2155 mm |
| Display brightness |
800 cd/m² |
| Display technology |
IPS |
| Aspect ratio |
4:3 |
| Display |
LED |
Packaging content
| Cables included |
DisplayPort, DVI, USB |
| Bundled software |
MediCal QAWeb |
| Quick start guide |
Y |
Ports & interfaces
| DVI port |
Y |
| DVI-D ports quantity |
1 |
| USB hub version |
USB 2.0 |
| USB Type-A downstream ports quantity |
3 |
| DisplayPorts quantity |
1 |
Ergonomics
| Pivot |
N |
| VESA mounting |
Y |
| Height adjustment |
Y |
| Swivel angle range |
-30 - 30 ° |
| VESA mounting interfaces |
100 x 100 mm |
| Height adjustment |
100 mm |
| Swivelling |
Y |
| Number of OSD languages |
14 |
| Tilt adjustment |
Y |
| LED indicators |
Y |
| On Screen Display (OSD) |
Y |
| Tilt angle |
-5 - 25 ° |
Weight & dimensions
| Weight with stand |
12800 g |
| Depth |
84 mm |
| Width (with stand) |
491 mm |
| Width |
491 mm |
| Weight |
8000 g |
| Height |
378 mm |
| Depth (with stand) |
235 mm |
| Height (with stand) |
572 mm |
Power
| Power consumption (typical) |
50 W |
| Power management |
Y |
| AC input frequency |
50/60 Hz |
Multimedia
| TV tuner integrated |
N |
| Built-in camera |
N |
| Built-in speaker(s) |
N |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
8 - 80% |
| Non-operating altitude |
0 - 7500 m |
| Operating altitude |
0 - 2000 m |
Certificates
| Certification |
CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k) |
| Compliance industry standards |
RoHS |
Packaging data
| Package depth |
585 mm |
| Package weight |
17700 g |
| Package width |
686 mm |
| Package height |
342 mm |
Additionally
| Display scan frequency (horizontal) |
15 - 129 kHz |
| Colour of product |
Black, White |
| Ethernet LAN connection |
N |
| AC adapter bundled |
Y |
| Energy efficiency compliance |
Unspecified |
| Operating temperature range (T-T) |
0 - 40 °C |
54.102 cm (21.3 ") TFT AM Color LCD IPS, 2048 x 1536, 800 cd/m², СR 1400:1, 40 ms, DVI-D Dual Link, DisplayPort, 3 x USB 2.0

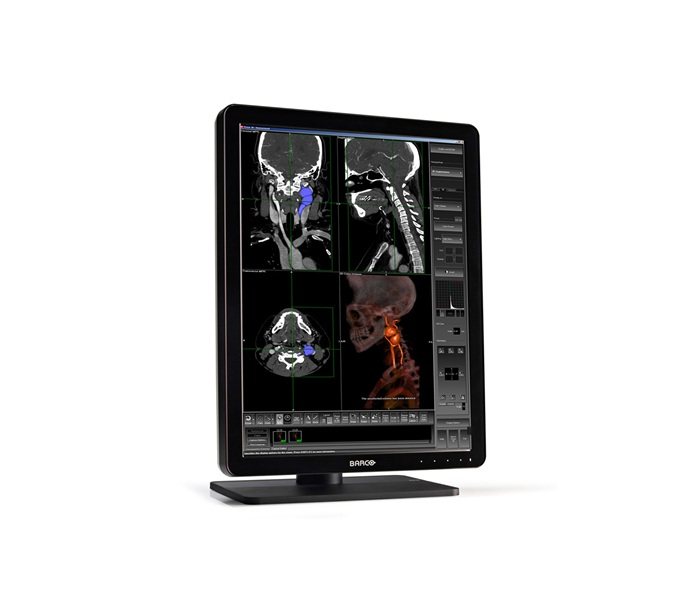

Nio Color 3MP LED is a 3 MegaPixel high-bright color display system with LED backlights, providing excellent image quality for confident diagnoses. Nio Color 3MP LED provides an effective display solution for a multitude of applications and modalities, including 3D PACS, 3D echo, ultrasound, orthopedic imaging, CAD, image fusion, nuclear medicine and PET.
Confident color reading
Equipped with high-bright LED backlights, Nio Color 3MP LED delivers excellent brightness and more shades of gray to detect subtle details more quickly. The unique front-of-screen sensor ensures you see consistent and precise images at all times for confident diagnoses.
On-demand image quality checks
The front-of-screen sensor on Nio Color 3MP LED, which works seamlessly with Barco's online MediCal QAWeb solution for automated Quality Assurance and on-demand calibration, makes sure you are viewing perfect DICOM images.
An excellent investment
Using energy-efficient LED backlights, Nio Color 3MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlights offer a long lifetime - even at high brightness - providing an excellent return on your investment.
