Performance
| Noise level |
45 dB |
| Processor frequency |
500 MHz |
| Heat dissipation |
205 BTU/h |
Ports & interfaces
| Serial ports quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
4 |
Data transmission
| VPN throughput |
85 Mbit/s |
| IPS/IDS throughput |
60 Mbit/s |
| Firewall throughput |
300 Mbit/s |
| Maximum firewall connections |
8000 |
| Maximum firewall connections per second |
1500 |
Power
| Number of power supply units |
1 |
| Power supply |
60 W |
| Input current |
1.6 A |
Protocols
| Data link protocols |
IPv4, IPv6, ARP, RIP, OSPF, VoIP, RPC |
| Routing protocols |
BGP |
Storage
| Flash memory |
4000 MB |
| Total storage capacity |
4 GB |
| Storage media type |
Flash |
Networking
| Quality of Service (QoS) support |
Y |
Additionally
| Wireless technologies |
Wired |

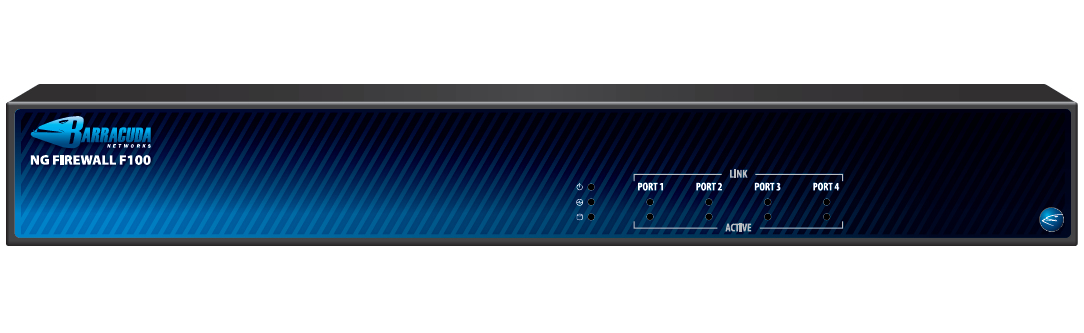

NG Firewall F100, VIA 500MHz, 2GB RAM, 4GB Flash, Gigabit Ethernet, 1x RJ-45 Serial, 256-bit AES
Improving Performance, Availability, and Security of Distributed Networks
The Barracuda NG Firewall is an enterprise-grade next-generation firewall that was purpose-built for efficient deployment and operation within dispersed, highly dynamic, and security-critical network environments
In addition to next-generation firewall protection, it provides industry-leading operations efficiency and added business value by safe-guarding network traffic against line outages and link quality degradation.
User identity and application awareness are used to select the best network path, traffic priority, and available bandwidth for business-critical traffic. In case of line failure, the Barracuda NG Firewall can transparently move traffic to alternative lines and keep traffic flowing.
The Barracuda NG Firewall meets enterprise requirements of massive scalability, efficient configuration and lifecycle management across dispersed networks, and performance guarantees for business-critical applications. The concept of integrated WAN optimization coupled with industry-leading centralized management results in significantly lower overall operational cost for multi-site deployments.
All policies, client, and device settings are centrally managed and tracked by the Barracuda NG Control Center.
Product Spotlight
- Powerful next-generation network firewall
- Intelligent traffic regulation and profiling
- Centralized management of all functionality
- Deep application control
- Comprehensive, built-in IDS/IPS
- Tightly integrated QoS and link balancing
- Template-based and role-based configuration
- Built-in web security (model F100 and higher)
Integrated Next-Generation Security
The Barracuda NG Firewall is designed and built from the ground up to provide comprehensive, next-generation firewall capabilities. Cloud-hosted content filtering and reporting offload compute-intensive tasks to the cloud for greater resource efficiency and throughput. Based on application visibility, user-identity awareness, intrusion prevention, and centralized management, the Barracuda NG Firewall is the ideal solution for today’s dynamic enterprises.
Regaining Control of User Activity
The Barracuda NG Firewall restores control to networks made opaque and unmanageable by mobile devices at work, Web 2.0 applications, increasing dispersion, and the growing integration and dependence on cloud-based resources. It extends security coverage beyond network boundaries, and makes it easy to monitor and regulate everything the network and its users are doing.
True Enterprise Readiness
The Barracuda NG Firewall meets the enterprise requirements for massive scalability and efficient management across distributed networks. Integrated WAN optimization and dedicated centralized management appliances enable organizations to increase system availability while keeping administrative time and operation costs low.
