Other features
| Video Dot Rate |
135 MHz |
| Display viewable area HxV |
376 x 301 mm |
Display
| Sync-on-green (SOG) |
Y |
| Vertical scan range |
56 - 75 Hz |
| Viewable size diagonal |
482.6 mm |
| Digital vertical frequency |
56 - 75 Hz |
| Digital horizontal frequency |
31 - 83 kHz |
| Composite sync |
Y |
Power
| Power consumption (off) |
0.6 W |
Ergonomics
| Swivel angle range |
45 - 45 ° |
| Height adjustment |
115 mm |
| Tilt angle |
22 - 5 ° |
Ports & interfaces
| DVI-D ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Display scan frequency (horizontal) |
31 - 83 kHz |

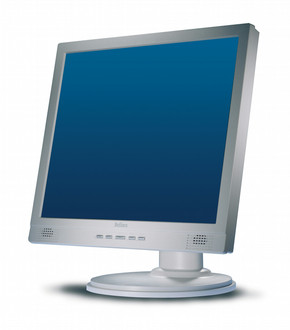

48.26 cm (19 ") TFT 1970 G1 1280 x 1024, TN + Film, 5 ms, 160° / 160°, 1100:1, TCO03, ISO 13406-2
Flexible and ergonomic
The Belinea 1970 G1 is the “little brother” of the 1980 G1 and its versatility, ergonomics and attractiveness make it stand out. Equipped with the latest generation of TN+Film panels the Belinea 1970 G1 provides excellent image performance for a variety of every day Office applications. The short response time of just 5 ms, integrated loudspeakers and the DVI-port demonstrate their strengths in particular when used for multimedia and video animations. Higher ergonomics and comfort also provide individual setting options. The display is height adjustable (lift) and can be swivelled to the side (swivel). The pivot function means the monitor can be used in both the classical landscape format as well as turned to portrait. A wide viewing angle predestines the Belinea 1970 G1 for consultant activities. The casing remains in timeless ClassicGrey and rounds off the high quality features.
