Ports & interfaces
DC-in jack |
Y |
Firewire (IEEE 1394) ports |
1 |
Line-in |
Y |
Number of microphone inputs |
1 |
Thunderbolt ports quantity |
2 |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
Host interface |
Thunderbolt |
Microphone in |
Y |
Headphone outputs |
1 |
Additionally
AC adapter bundled |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |
8 divices, Mac, Silver

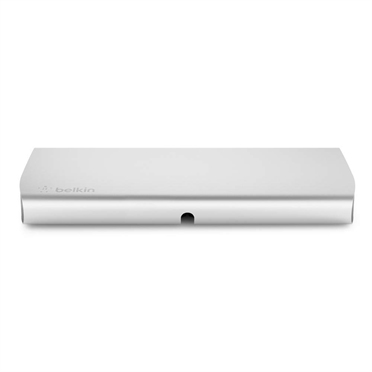

<b>Introducing Thunderbolt™ Express Dock</b>
The Belkin Thunderbolt™ Express Dock is an easy, powerful way to take advantage of Thunderbolt™ technology. The Thunderbolt™ Express Dock lets you use a single connection to create high-speed, reliable transfers between your laptop and up to eight other devices, including FireWire, Ethernet, USB, and daisy chaining multiple Thunderbolt™ devices.
So taking your laptop when you go, and bringing it home when you return means connecting with only one cable.
<b>EASY IS BEAUTIFUL</b>
With Thunderbolt™ Express Dock, all your drives, networking, input and output devices connect to the 8 ports on the back. It in turn connects to your laptop through one Thunderbolt™ port. In short, eight cables become one cable.
So taking your laptop when you go, and bringing it home when you return means dealing with a single cable. Which connects you to a very brave new world indeed.
<b>Fast is Beautiful</b>
Thunderbolt™ is a quantum leap forward. Suddenly everything is faster, easier, better. Thunderbolt™ moves data on two bidirectional 10Gbps channels. That's 20 times faster than USB 2.0, 12 times faster than FireWire 800. And it means an entire HD movie transfers in 30 seconds. A whole year of continuous music? 10 minutes. And thanks to the Belkin Thunderbolt™ Express Dock, life on your laptop is about to be very different. In a very good way.
- Connect 8 separate devices to your laptop through a single Thunderbolt cable (Cable sold separately)
- 1 Thunderbolt port to connect to laptop
- 1 Thunderbolt port to connect Thunderbolt devices (Daisy-chain up to 5 devices through one port)
- 1 Gigabit Ethernet port
- 1 FireWire 800 port
- 1 3.5mm Headphone Output Jack
- 1 3.5mm Audio Input Jack
- 3 USB 3.0 ports (data transfer at 2.5Gbps max)
- Powered USB 3.0 Ports support USB Charging (500mA)
- Cable-management channel
