Wireless LAN features
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
| Detachable antenna(s) |
Y |
Other features
| USB ports quantity |
2 |
| xDSL connection |
N |
| USB version |
2.0 |
| Input current |
1.6 A |
| Frequency band |
2.4 GHz |
| Rack mounting |
N |
| Bandwidth (first) |
2.4 GHz |
| Mobile network connection |
N |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
IPv4, IPv6, IPv4/IPv6, SNTP, DNS, DDNS, MLD, PPPoE |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| Firewall security |
NAT |
Networking
| Management protocols |
IGMP, EZSO |
| Routing protocols |
RIP-2, RIP-1 |
WAN connection
| 3G/4G USB modem compatibility |
Y |
| Ethernet WAN |
Y |
Additionally
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

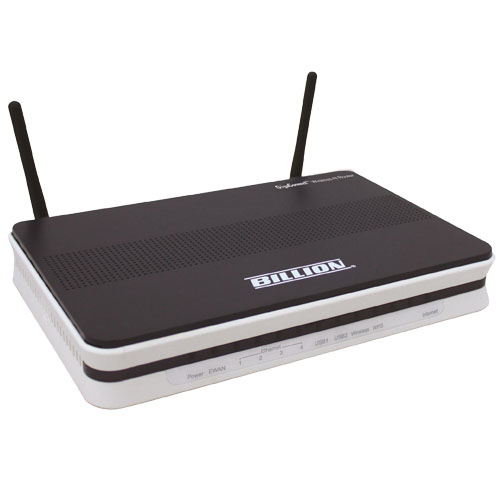

BiPAC 6300NXL, Firewall, IEEE 802.11b/g/n, Gigabit Ethernet, USB 2.0
The BiPAC 6300NX(L) is an advanced broadband router with Gigabit LAN and WAN for home, SOHO and office users that offers flexible and multiple ways to enjoy high-speed and high-level secure Internet connectivity.
The Dual WAN interface allows connection to current superfast fibre connections (FTTC) and future ultra-fast connectivity (FTTP/FTTH), with WAN throughput in excess of 900Mbps. Two USB ports on the rear of the router will support 3G/4G LTE services from selected dongles for high-speed mobile connectivity, including load-balancing functionality (BiPAC 6300NX only). Failover between fixed line and mobile connectivity also quickly and smoothly ensures maximum Internet uptime.
With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN ports, the gateway enables faster wireless speeds of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mpbs Ethernet LAN. The BiPAC 6300NX(L) provides a unique Management Center, enabling users to monitor 3G/4G LTE signal strength, bandwidth, download speed, and much more.
