Networking
| Supports ISDN connection |
N |
Other features
| Downstream data rate |
24 Mbit/s |
| Upstream data rate |
1 Mbit/s |
| Maximum data transfer rate |
0.024 Gbit/s |
| Non-operating relative humidity (non-condensing) |
20 - 95% |
| ATM features |
5-AAL5, UBR, CBR, VBR-rt, VBR-nrt |
| xDSL connection |
Y |
| Input voltage |
12 V |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
DSL features
| DSL specification |
ANSI T1.413 Issue 2, ITU G.992.1, ITU G.992.2, ITU G.994.1, ITU G.992.3, ITU G.992.5 |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
PPPoE, RFC 2364 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |

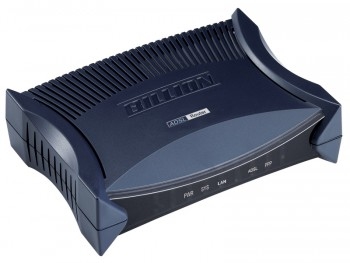

Pocket-size ADSL2+ Modem/Router
Billion's BiPAC 5200 is an easy-to-use yet economical pack of ADSL2+ Modem/Router perfectly designed for home and SOHO users to enjoy rich firewall security, user-friendly Web interface, and faster speed when using ADSL Internet connection. The router lets you share high-speed ADSL Internet connection, even faster with advanced ADSL2+ capability of downstream rate up to 24Mbps. The powerful SOHO Firewall feature protects against hackers' attacks when you surf the Internet. VPN pass-through is also built-in for secure access. In addition, the web-based Graphic User Interface allows you to install and manage your network easily. The BiPAC 5200 makes fast net surfing affordable and easy - Going online is just 'plug & play'.
- High speed Internet access with ADSL2/2+; backward compatible to ADSL;
- Easy Network Management Integrated with 4-port Ethernet Switch (BiPAC 5200);
- SOHO Firewall Security with DoS Prevention and Packet Filtering;
- Universal Plug and Play (UPnP) Compliant;
- Dynamic Domain Name System (DDNS);
- Supports Virtual Private Network (VPN) pass-through;
- Ideal for Home and SOHO Usersю
Express Internet Access
The router complies with ADSL worldwide standards. It supports downstream rate up to 12/24 Mbps with ADSL2/2+, 8Mbps with ADSL and upstream rate up to 1 Mbps. With this technology, users enjoy not only highspeed ADSL services but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever. Particularly, Annex M standard combined in the model of BiPAC 5200. A supports the latest ADSL2/2+ for higher upload speeds by doubling the upstream data rate.
SOHO Firewall Security
Along with the built-in NAT firewall feature, the router also provides advanced hacker pattern-filtering protection. It can automatically detect and block Denial of Service (DoS) attacks. In addition to the NAT technology, the BiPAC 5200 supports Packet Filtering for high-level security control.
Easy Network Management
The Web-based User Interface makes the BiPAC 5200 extremely easy for users to install and manage the network. With DHCP client and server built-in, system administrators can easily attach this security router into existing network and manage the IP assignment without re-configuring other stations. Furthermore, future firmware upgrade can be done via the friendly Web-based User Interface.
