Billion BiPAC 8200 Fast Ethernet

BiPAC 8200 - VDSL2, 4x Ethernet <b>VDSL2 Firewall Router</b>

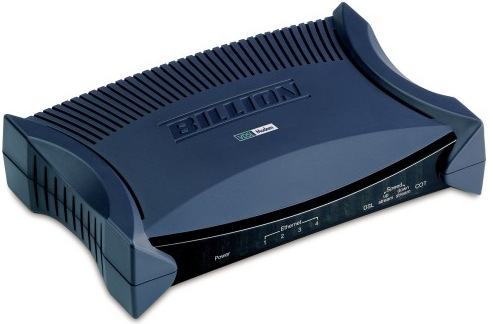

The BiPAC 8200 is an all-in-one VDSL2 / broadband Router. It is designed for home and SOHO users who seek for high-speed broadband access with VDSL2. The SOHO firewall is integrated to provide protection against hacker attacks while the Quality of Service prioritizes queues and traffic for applications such as music downloads, online gaming, video streaming and file sharing.

- Compliant with ITU-T G.993.2 , G.994.1 and G.997.1 VDSL2 standard
- VDSL2 profiles: 8a/b/c/d, 12a/b, 17a, 30a
- Band plan 997 and 998 supported
- Annex A, Annex B, Annex C supported
- US0 supported
- OLR supported
- Compliant with VDSL2 MIB
- Integrated 4-port Ethernet switch
- Ideal for LRE applications
- SOHO firewall security with DoS prevention and packet filtering
- Universal Plug and Play (UPnP) compliant
- Easy Sign-On (EZSO) and web-based configuration
- Quality of Service control
- Easy network management
- Supports TR-069 *1

<b>Very High-speed Connectivity for Internet Access and IPTV Service</b>
The BiPAC 8200 is a single VDSL2 port router equipped with four Ethernet ports by embedded 10/100Mbps Ethernet Switch. Compliant with ITU-T G.993.2 (VDSL2) , G.994.1 (handshake) and G.997.1 (Physical layer management for digital subscriber line) VDSL2 standard, the BiPAC 8200 interoperates with major chipsets, and supports Profile 30a with line rate up to 100Mbps/100Mbps for various bandwidth-consuming applications, like video streaming or Video on Demand.

<b>Standard-compliant to ITU-T G.993.2, G.994.1 and G.997.1</b>
The BiPAC 8200 complies with the international standards and interoperates with other major/open chipsets. It supports different profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a); different band plans (997, 998, and proprietary) and different annex types (Annex A, Annex B and Annex C), by factory settings to fit into different requirements.

<b>Firewall Security and Smooth Traffic</b>
With the built-in NAT default firewall, the advanced anti-hacker pattern-filtering protection features automatically detect and block Denial of Service (DoS) attacks. In addition, Packet Filtering provides high-level security for access control. Quality of Service Control prioritizes the traffic and allows users to enjoy smooth traffic while running applications such as P2P or multimedia through the Internet.

<b>Easy Network Management</b>
The Web-based User Interface of the BiPAC 8200 makes it extremely easy for users to install and manage the network. The router supports both DHCP client and server, enabling system administrators to easily integrate this router into existing network environments, as well as manage IP assignment without having to reconfigure other stations.
