Ports & interfaces
| DC-in jack |
Y |
| WAN connection |
Ethernet (RJ-45) |
Antenna
| Number of connectors |
2 |
| Antenna type |
External |
Performance
| Syslog |
Y |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4/5 GHz |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| 2.4 GHz |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| 5 GHz |
Y |
| Auto MDI/MDI-X |
Y |
| VLAN support |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Management protocols |
SNMP, Telnet, SSH, HTTP, HTTPS |
Security
| MAC address filtering |
Y |
| VPN support |
IPsec, L2TP, PPTP, GRE |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
9 - 36 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
1000 Mbit/s |
Outdoor WLAN AP, 2.4/5 GHz, 802.11abgn, 2 x Gigabit Ethernet RJ-45, PoE, IP65
Outdoor WLAN AP IP65 with one radio according 802.11abgn (2,4/5 GHz) Mimo 2x2, two IP65 protected Gigabit ETH, PoE, 2x N antenna sockets, Incl. wall mounting, without antennas and without power supply
<b>Outdoor WLAN Access Point</b>
- Works as stand-alone AP, managed AP, WLAN client, Bridge
- Dualband 802.11abgn with Mimo 2x2
- Power supply 12-24V DC or PoE (802.3af)
- Aluminium housing IP65 protected for outdoor usage
- Large temperature range -25˚C to +70˚C
- Wall and pole mounting possible
<b>Outdoor WLAN Access Point</b>
Rugged outdoor WLAN access point can be used as WLAN-AP, WLAN HotSpot, WLAN Client or to build a wireless bridge connections
<b>Product description</b>

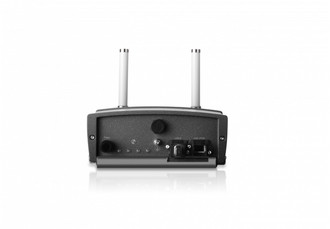

The bintec WO1003n is an IP65-rated access point for outdoor use. The robust, water-resistant metal housing and wide operating temperature range from -25° to +70° make the device suitable for use in extreme environmental conditions. The high durability standards of the device are also reflected in its ports. For the antenna jacks, for instance, weatherproof Type N connectors are used.
The device is equipped with an 802.11 abgn radio module with MIMO 2x2 technology, enabling raw data rates of up to 300 Mbps. The radio module can be used in either the 2.4 GHz or 5 GHz frequency band.
<b>The bintec WO1003n as a HotSpot to provide internet access in public spaces</b>
With the optional bintec HotSpot, the WO1003n is ideal for providing internet access for public spaces. If you're using multiple access points, the bintec WLAN Controller offers additional load balancing capabilities to ensure good performance when handling large numbers of wireless clients.
<b>The bintec WO1003n for logistics</b>
If you need to provide wireless coverage across a large outdoor storage location, for instance to connect handheld scanners to your inventory management system, the bintec WO1003n in conjunction with a bintec WLAN Controller is an ideal solution. The WO1003n's use of the IAPP protocol together with careful radio cell planning ensures optimal roaming behavior for your wireless scanners in this scenario.
<b>The bintec WO1003n as a wireless bridge</b>
In conjunction with our comprehensive line of directional antennas, WO1003n routers can be used in pairs to set up very powerful wireless bridges. We offer corresponding bridge link kits to make it easier to obtain the necessary peripheral equipment.
<b>Management</b>
To configure individual devices, all you need is an internet browser. The device's integrated web server allows for rapid configuration and monitoring via the graphic user interface. If you are using the devices as access points however and plan to install more than two of them, a managed network that includes a bintec WLAN Controller is the preferred solution.
<b>WLAN Controller</b>
Optimize your WLAN network by using a bintec WLAN controller. The bintec WLAN controller allows configuration of your customers WLAN network in lesser than 30 minutes ... and this without deeper WLAN know-how! The automatic RF management system relieves you the time killing search for free WLAN channels and selects the best channels for the system.
For smaller WLAN networks up to 6 APs bintec access points are able to take over the function of the WLAN controller by themself and work as quasi master APs. For networks with up to 12 APs you will need a bintec RS series router as WLAN controller hardware. You are able to manage bigger WLANs with up to 150 AP by using a bintec RXL12x00 as WLAN controller hardware.
<b>Mounting and installation</b>
The bintec WO1003n is suitable for standard wall mounting or, using the optional pole mounting hardware, can be mounted directly on an antenna mast.
The unit can be powered either via PoE or a 100-240V plug-in adapter.
As antenna is the Antenna-Kit (5520000145) as accessory available. The antenna kit contains two Omni antennas with water resistant N-type socket and swivel feature. The antenna can be directly attach to the Access Point without any cables. As an alternative an external antenna with higher gain can be used. In this case the adapter cable CAB-N-N-0,5m (5500001764) is required.
