Performance
| Motherboard form factor |
Micro ATX |
| Supported processor sockets |
LGA 1151 (Socket H4) |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1866, 2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Internal I/O
| USB 2.0 connectors |
2 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
| Front panel connector |
Y |
Graphics
| DirectX version |
12.0 |
| On-board graphics adapter |
N |
| HDCP |
Y |
Technical details
| Thermal Design Power (TDP) |
91 W |
| Integrated LAN |
Y |
| Total number of SATA connectors |
4 |
| USB version |
2.0/3.0 (3.1 Gen 1) |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB connector type |
USB Type-A |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel H110 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

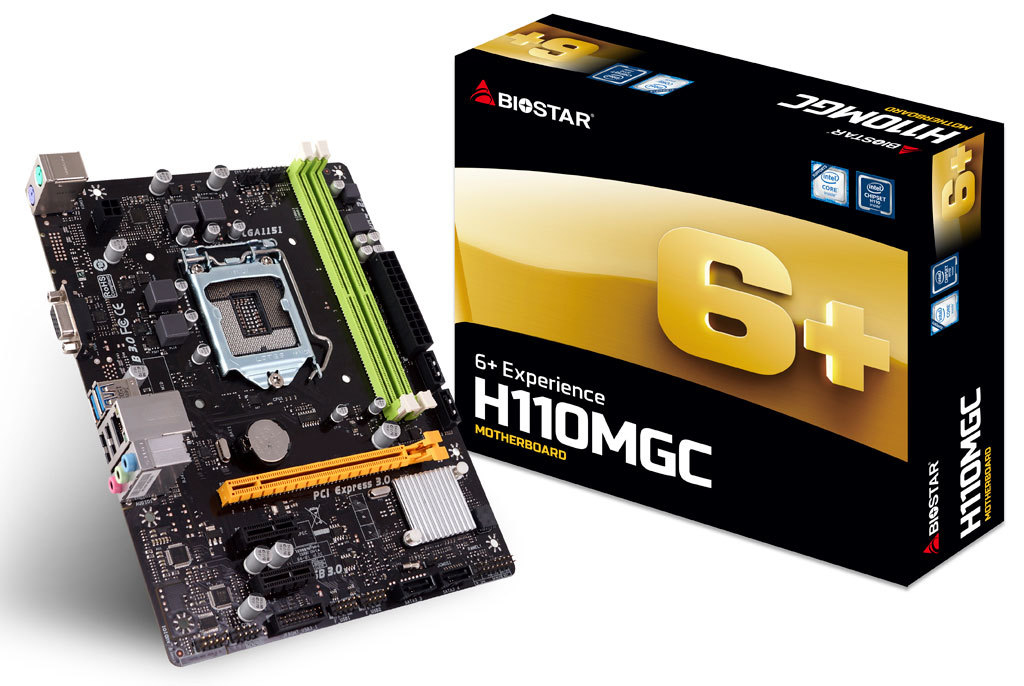

Intel H110, Intel Core i7 LGA 1151, Intel Core i5 LGA 1151, Intel Core i3 LGA 1151, Intel Pentium LGA 115, Intel Celeron LGA 1151, TDP 91 W, DDR4 2133/1866 MHz, DIMM, 32 GB, PCI-E x16 3.0, PCI-E x1 2.0, SATA3, USB 3.0, USB 2.0, Realtek TRL8111H, Realtek ALC887, PS/2, VGA, RJ-45, Micro ATX, Windows 7/8.1/10
- Support 6th Generation Intel® Core™ Processor
- Intel H110 single chip architecture
- Support 2-DIMM DDR4-2133/ 1866 up to 32G maximum capacity
- Support GbE LAN
- Support USB 3.0
Audio+
HD Audio
Provides high quality sound with minimal loss of audio fidelity.
Video+
DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
Speed+
PCI-E Gen 3.0
PCI-E 3.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 8GT/s bit rate, the interconnect performance bandwidth is doubled over PCI-E 2.0, while preserving compatibility with software and mechanical interfaces.
USB 3.0
Experience Fastest data transfers at 5 Gbps with USB 3.0--the new latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and backward compatible with previous USB 2.0 components.
Durable+
Moistureproof PCB
The popularity of PC usage and working environment is getting deteriorating and moist(rural, coastal, etc.). The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moisture-proof PCB meets high density and high reliability requirements for moisture proof.
Low RdsOn P-Pak MOS
Low resistance design can significantly reduce the current out of energy loss.Low temperature, small size, excellent thermal conductivity.
Protection+
Super Anti-Surge Protection
BIOSTAR exclusive Anti-Surge design provides the best protection of board and extends the product life. Having the latest model of "Transient Voltage Suppressor" on- board can effectively protect the board circuit, reducing the shocks caused by ESD as well as other damages arising from overvoltage transients to enhance system durability.
Super LAN Surge Protection
Super LAN Surge Protection, providing LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical stability and prevent damage from lightning strikes and electrical surges. SLSP (Super LAN Surge Protection) series motherboard upgrades the existing system protection standards with maximum 4X protection comparing to other board makers.
ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy PC by electrical overstress(EOS) condition, ESD occurred by PC users when touch any devices connect to PC, which may result in damage to motherboard or parts .ESD protection is designed to protect the motherboard and equipment from damage by EOS
USB Polyswitch
On board dedicated power fuse to help prevent USB port failure. It prevents USB Port overcurrent and safegurand your system and device lifespan.
OC / OV / OH Protection
All BIOSTAR special circuit design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect your system. Over current protection, avoid motherboard from damage when doing overclock or an unusual current import. Over heat protection, avoid motherboard & CPU from burning when exceeding the temperature limitation.
High Quality ESD
BIOSTAR Hi-Fi series motherboards provide high quality ESD (Electro-Static Discharge) solution for its front I/O panel. This function prevents static electricity and reduces the damage to the motherboards when you are plugging or unplugging your headphone.
DIY+
Header Zone
Users can easily assemble their own computer, a simple-swap data discs and other accessories.
CPU-Chipset Features
Intel H110 chipset
The Intel® H110 chipset is a single-chipset design to support socket 1151 Intel® 6th generation Intel® Core™ processor-based platform. Provides excellent performance and increased bandwidth and stability. Intel® H110 chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance. The PC platform features improved adaptive performance that adds speed when you need it. When combined with advanced system responsiveness, the platform delivers the ultimate PC experience.
