Display
Display diagonal |
55 " |
Contrast ratio (dynamic) |
100000:1 |
Response time |
9 ms |
Screen format adjustments |
4:3, 16:9, Zoom |
LED backlighting type |
Edge-LED |
Contrast ratio (typical) |
1200:1 |
Viewing angle, horizontal |
178 ° |
Viewing angle, vertical |
178 ° |
Display brightness |
330 cd/m² |
HD type |
Full HD |
High frequency rate |
60 Hz |
3D |
N |
Supported graphics resolutions |
1920 x 1080 (HD 1080) |
Aspect ratio |
16:9, 4:3 |
Display resolution |
1920 x 1080 pixels |
Ports & interfaces
PC in (D-Sub) |
Y |
PC Audio in |
Y |
DVI port |
N |
Headphone outputs |
1 |
VGA (D-Sub) ports quantity |
1 |
HDMI ports quantity |
1 |
USB 2.0 ports quantity |
1 |
Digital audio optical out |
1 |
Weight & dimensions
Weight with stand |
20910 g |
Depth |
56 mm |
Width (with stand) |
1242 mm |
Weight |
16830 g |
Width |
1242 mm |
Height |
724 mm |
Depth (with stand) |
220 mm |
Height (with stand) |
775 mm |
Power
Power consumption (typical) |
54 W |
Power consumption (standby) |
0.5 W |
AC input frequency |
50/60 Hz |
Ergonomics
VESA mounting |
Y |
Cord length |
1.55 m |
VESA mounting interfaces |
300 x 300 mm |
Audio
Number of speakers |
2 |
Built-in speaker(s) |
Y |
TV tuner
Analog signal format system |
NTSC |
Digital signal format system |
ATSC |
Performance
24p support |
Y |
Child lock |
Y |
Packaging data
Package depth |
152 mm |
Package weight |
24900 g |
Package width |
1330 mm |
Package height |
810 mm |
Additionally
Colour of product |
Black |
RS-232 port |
1 |
Ethernet LAN connection |
N |
On/Off switch |
Y |

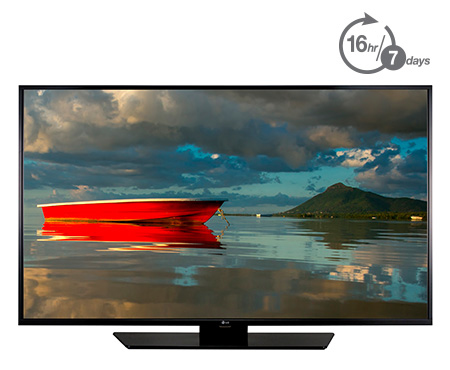

LED HDTV, 55”, 1920x1080, 330cd/m2, 9ms, 60Hz, 1200:1
USB CLONING
The USB Cloning feature allows you to simply copy the TV settings onto all TVs using a USB stick, a process that is fully automated to save time without having to set each TV one by one.
Welcome Screen
Welcome visitors with a warm greeting message that includes your business name and logo.
Multi IR
Multi IR function eliminates the remote control signal interference between TVs in multiple dwelling rooms. This system will work using the same LG TV model.(Optional 124-213-10 required)
RS232C CONTROL
Via the TV's RS-232C port, you can remotely control multiple TVs' power and volume settings simultaneously.
EXTERNAL SPEAKER OUT
Enhance the entertainment experience by adding an additional speaker, visitors to listen to and control the TV audio from anywhere in your business area, including restrooms.
USB 2.0
You can play images and videos from and record TV programs to external storage devices. Immediate recording and reserved recording options are available.
