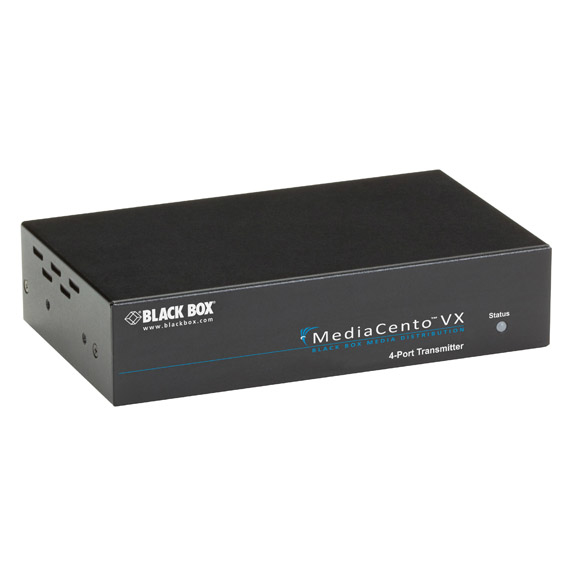

Black Box AVX-VGA-TP-TX-4 AV transmitter Black AV extender

VX 4-Port, DB9 F, HD15 F (VGA), RJ-11, 1920 x 1200 Use ordinary copper UTP cable to distribute analog RGB video to multiple screens with the MediaCento™ VX system. The extender sends four channels of VGA video, stereo audio, and serial signals 492 feet (150 m) or 1000 feet (300 m), or more than 2000 feet (609.6 m) when the distribution chain includes the family's cascadable receiver repeaters.

Because the transmitter and receivers install directly into an existing non-networked CATx infrastructure, integration is easy. There's no longer the need to pull new VGA cables to distribute video to distant monitors and displays.

Plus, the system supports most common VGA resolutions, including WUXGA (1920 x 1200), Full HD (1920 x 1080), and UXGA (1600 x 1200) video on analog connectors, even at the longer distances.

What's more, MediaCento VX features a unique, user-friendly graphical user interface for managing all VGA screen connections. No more fiddling with complex commands. Not only can you use the GUI to enable or disable audio/video output simply by clicking on icons, but you can also put extender devices into groups for easier control of screen connections—great for managing broadcasting and command and control applications.

Simply add devices to a group that you'd like to control at the same time. You can also use the icon-based menu to easily add a transmitter to a connection pattern branch, set up and remove branches from a device, copy and paste a device branch to the another device, apply settings to all extender devices, and more.

For connection to a management computer, the MediaCento VX 4-Port Transmitter includes an RJ-11 cable and RJ-11/DB9 converter for connecting via RS-232.

Unique equalizer (sharpness), gain (brightness), and RGB skew controls on all receivers make it easy to fine-tune the video image quality over longer CATx cable runs.

What's more, a second VGA port and second 3.5-mm audio jack on the extender transmitter enable you to connect a local monitor and speakers.

Or you can use local VGA port to cascade to as many as three other 4-port (AVX-VGA-TP-TX-4) or 8-port (AVX-VGA-TP-TX-8) transmitters. For it to work as a downstream broadcaster, just slide a switch on the back panel to activate cascade mode and set its master/slave switch to "master," telling it to work as the source provider. (When the switch is in the "slave" position, the transmitter works as a duplicator in a cascade.) Want to expand to even more screens in a system? Order one or more of our cascadable, long-range AVX-VGA-TP-CSRX receivers. They can be linked via their RJ-45 ports to work as signal repeaters (with a maximum of four units in a chain) and/or be used to cascade via their VGA video ports to another transmitter. Depending on the transmitters and receivers ordered, the system supports as many as 32 threads and more than 1000 displays in a VGA distribution network.
