Processor
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Ports & interfaces
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| Headphone outputs |
1 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| DVI-I ports quantity |
1 |
| eSATA ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Line-out |
Y |
Storage
| Storage media |
HDD |
| Card reader integrated |
N |
| Total storage capacity |
500 GB |
Packaging content
| External power adapter |
N |
| Handheld remote control |
Y |
Video
| On-board graphics adapter |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

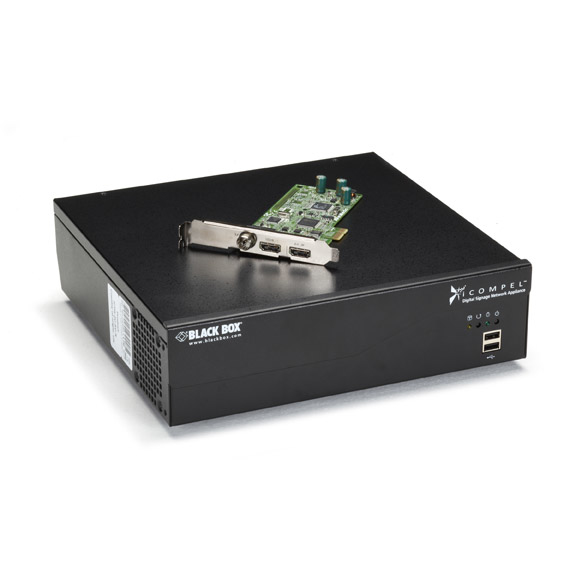

2U, HD Video Capture, Intel Core i3, 2GB RAM, 500GB HDD, Gigabit LAN, 4.2 kg, Black
<b>Quick Facts</b>
- An appliance-based solution that sets up fast with all software preinstalled.
- Free updates and no ongoing subscription or licensing fees for lower cost of ownership.
- Our highest-performing system for high-quality SMB signage, plus HD video input.
- 2U, rackmountable.
<b>Further Details</b>
- Controllable via a standard Web browser connection.
- Includes free professionally designed screen layouts.
- Easy to scale. Use standalone with one screen or across a network to show content on multiple screens.
- Screen content can be updated locally. Instantly add text messages or alerts for an audience.
- Features built-in video card for pure HDMI digital video input from a set-top box.
- Supports 1080p video processing with DisplayPort, HDMI®, and DVI-I outputs.
- Plays up to four simultaneous videos—great for showing a mix of different video side by side.
- Also supports unlimited zones for text and images, and up to 15 zones for HTML.
- Easy to change and alter layouts and graphical effects with drag-and-drop tools.
- Set up multizone layouts with each zone playing different media from its own playlist.
- Simple to stream dynamic RSS feeds from the Internet. Supports XML.
- Rotate screen images for either portrait or landscape orientation.
- Highly secure Linux® based appliance with built-in firewall.
- GPIO external device input capabilities (for motion detectors, sensors, etc.).
- Wallmountable with the optionally available Wallmount Kit (ICOMP-WALL).
- Or mount it in a rack with the separately available Rackmount Ears (ICOMP-RACK)
