Performance
| Maximum transfer distance |
5600 m |
| Type |
Network transmitter & receiver |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

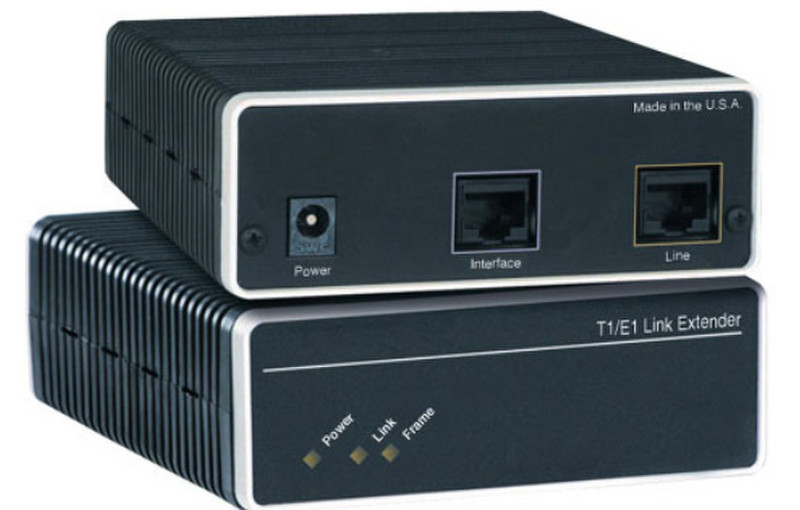

T1 Extender for Copper, 2-Pack
This T1 extender sends your data up to 3.5 miles (5.6 km).
<b>Quick Facts</b>
- Extend T1 lines to 3.5 miles (5.6 km) over a single twisted pair.
- Ideal for T1 backhauls from a remote site, relocation, extension across a campus, and last-mile TDM delivery.
<b>Further Details</b>
- Plug-and-play.
- Put one unit on each side of the dry copper pair, connect your T1 devices, and go.
- Use only two polarity-insensitive pins so you can connect either wire to either pin.
- Operate in Clear Channel mode to easily transport voice and data circuits (F-bit included.)
- Check status via the front-panel LEDs.
- Rackmount panels are also available.
Requiring zero configuration, this plug-and-play T1 extender communicates over voice-grade twisted-pair cabling, enabling you to get more distance with fewer copper pairs.
Extend your T1 circuits beyond their typical reach and get more from your copper cabling. BLACK BOX T1 Extenders for Copper extend T1s as far as 3.5 miles (5.6 km) and require just a single pair of wires to operate.
<b>Save by making the most of your copper.</b>
With these extenders, you can increase connections from the demarc to equipment in your building, and save money by linking remote PBXs over existing dry copper. If you're a service provider, you can use the extenders to reach a larger subscriber base with less copper and at longer distances—without the need for repeaters!
<b>Plug and play with no user settings required.</b>
Plus, they're easy to set up and use, delivering TDM circuit extension with no configuration. Just take them out of the box, place them on opposite sides of the dry copper, and plug in your T1 or E1 line. The circuit is now ready for communications. Because the two active pins on the extenders' RJ-45 connector are polarity sensitive, you don't even have to worry about which wire is connected to the line interface.
<b>Easy to troubleshoot.</b>
Intuitive LEDs alert you to any possible line or circuit problems. For instance, a solid green Link LED indicates a good end-to-end link, and a solid green Frame LED indicates valid framing on the link.
<b>Save space and rackmount multiple units.</b>
You can also stack and organize your extenders and other equipment in the optional 19" Universal Rackmount Panel (ME330-2, ME330-10; sold seperately). Each slot in the panel operates independently, and the rear side has slots for device power supplies.
