Features
| Maximum weight capacity |
180 kg |

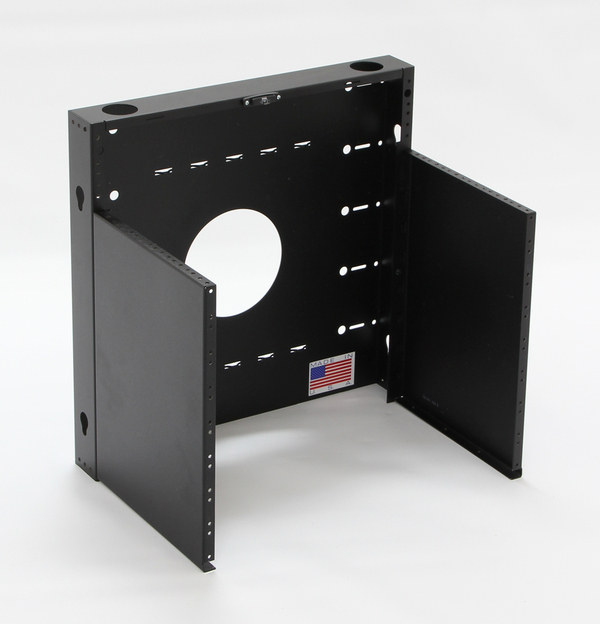

6U + 2U Standard MiniRaQ
The 8U MiniRaQ Standard includes a 2.5" deep backplate and (2) 6U side panels. The upper section of the backplate features a 2U space dedicated for installation of up to 48 ports of patch panel hardware. The 6U side panels are capable of holding over 400 lbs. of equipment mounted in a vertical orientation. This open rack extends only 13.3" from the wall and can accommodate rackmount equipment with any depth/length. Two circular holes on the top of the backplate can be used for data cable routing, power cable routing or conduit routing. An integrated level and grounding lug assures that a single technician can quickly & accurately install the MiniRaQ and properly ground all installed equipment. All MiniRaQ products are modular and qualify for shipment via UPS or FedEx Ground, eliminating the need for a costly liftgate or forklift at the delivery site.
- Revolutionary space saving design - Deploy up to 16U of equipment.
- Optimized for today's deep rackmount components
- Equipment is installed vertically to allow placement in small previously unusable spaces.
- Dedicated patch panel space with up to 4U at top of backplate.
- Available with field upgradeable 4U, 6U, 8U or 10U side panels.
- Designed to hold up to 400 lbs. of equipment without additional bracing.
- Rapidly mounts to wall studs, backboard or concrete block.
- Installation is easily performed by a single technician.
- Integrated bridge lances for easy and efficient cable management.
- Large cable access holes on top, bottom & sides of backplate.
- Integrated earth grounding stud.
- Constructed from heavy duty 14AWG steel.
- Convertible models are field upgradeable to fully enclosed & locking MiniRaQ Secure.
