Weight & dimensions
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Fan weight |
140 g |
Performance
| Pulse-width modulation (PWM) support |
Y |
| Airflow |
100 m³/h |
| Dustproof |
Y |
| Maximum air pressure |
1.46 mmH2O |
| Noise level (low speed) |
7 dB |
| Noise level (high speed) |
22.1 dB |
| Rotational speed (min) |
600 RPM |
| Rotational speed (max) |
1500 RPM |
| Type |
Fan |
| Suitable for |
Computer case |
| Number of fans |
1 fan(s) |
| Fan diameter |
120 mm |
Power
| Voltage |
5.5/12 V |
| Power supply |
1.2 W |
600-1500 RPM, 4 -pin PWM, 5.5/12 V, 1.2 W, 7-22.1 dB, 40-100 m³, 120x120x25 mm, 140 g

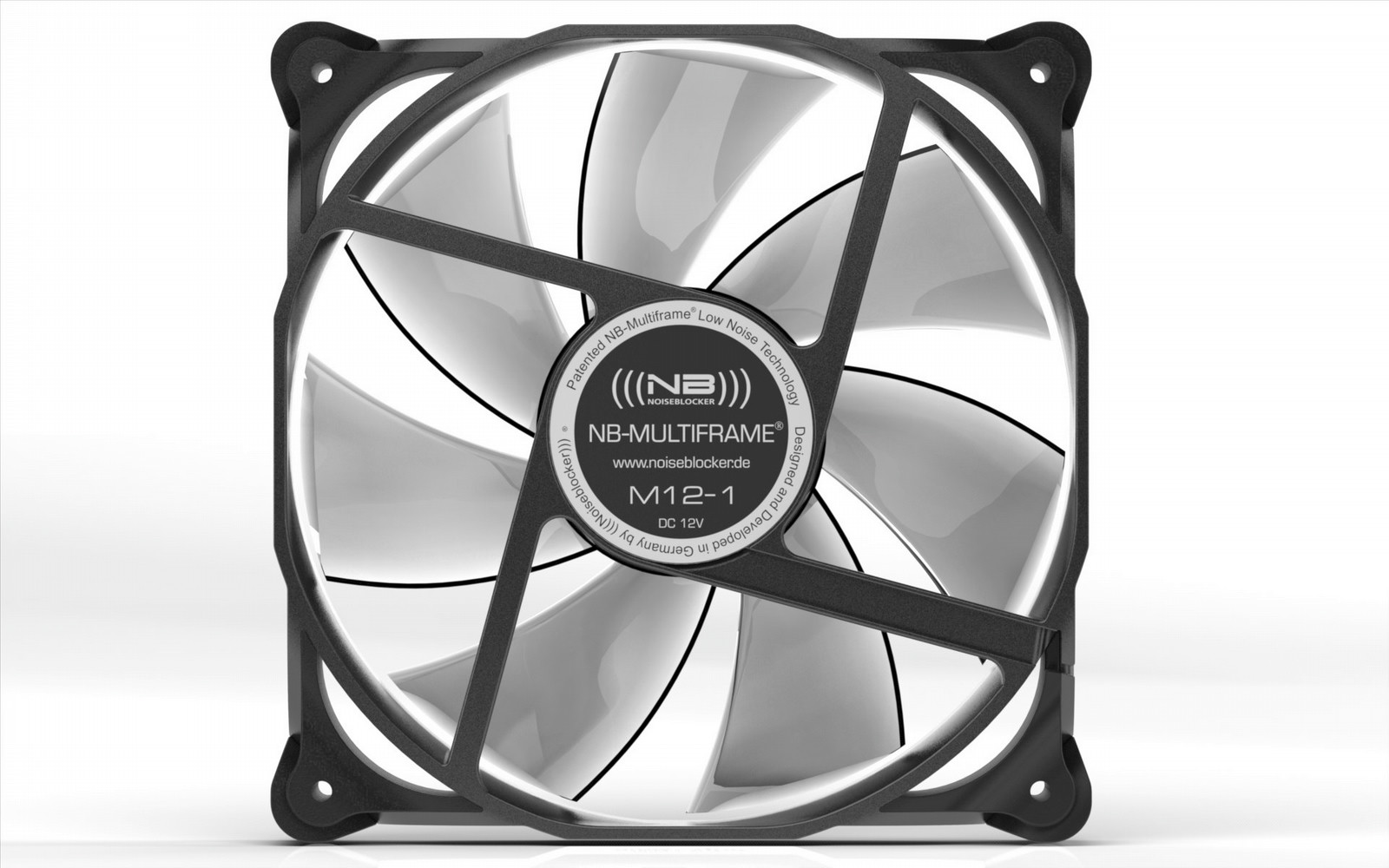

Developed and patented in Germany, the original Multiframe-Series has been a milestone in fan construction since 2008 and has been an example for an entirely new generation of fans. We offer a standard selection of especially low-noise fans in sizes of 80 x 80 x 25 mm and 120 x 120 x 25 mm with different power stages.
The worldwide standard in vibration-free fans
- 100% developed in Germany
- fully integrated body-noise, silicone attenuators
- position-invariant magnetic bearing NB-NanoSLI® 2NEW!
- silent NB-EKA P2 Drive NEW!
- Bayer® Makrolon® rotor with anti-dust technology
- weighted reinforced fibreglass PBT frame
- 50 cm cable with high-quality textile sheath
