Display
| Display diagonal |
22 " |
| Contrast ratio (dynamic) |
80000:1 |
| Response time |
5 ms |
| HD type |
Full HD |
| Aspect ratio |
16:9 |
| Screen format adjustments |
16:9 |
| Viewing angle, horizontal |
160 ° |
| Viewing angle, vertical |
160 ° |
| Display brightness |
250 cd/m² |
| Display resolution |
1920 x 1080 pixels |
Performance
| Teletext function |
Y |
| Extended PVR |
Y |
| Video formats supported |
H.264, MKV, MP4, MPEG1, MPEG2, MPEG4, AVI, TS, XVID |
| Image formats supported |
BMP, JPEG XR, PNG |
| Audio formats supported |
AAC, M4A, MP3 |
| Supported file systems |
FAT32, NTFS |
| Parental control |
Y |
| Child lock |
Y |
Packaging content
| Cables included |
RCA |
| Manual |
Y |
| Handheld remote control |
Y |
| Batteries included |
Y |
| Warranty card |
Y |
Ports & interfaces
| PC in (D-Sub) |
Y |
| PC Audio in |
Y |
| DVI port |
N |
| Common interface (CI) |
Y |
| Common interface Plus (CI+) |
N |
| Composite video in |
1 |
| Audio (L,R) in |
1 |
| Headphone outputs |
1 |
| USB 2.0 ports quantity |
1 |
| Digital audio coaxial out |
1 |
| VGA (D-Sub) ports quantity |
1 |
| RF ports quantity |
1 |
| HDMI ports quantity |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| SCART ports quantity |
1 |
Smart TV
| Timeshift |
Y |
| Internet TV |
N |
Management features
| Hotel mode |
Y |
| Sleep timer |
Y |
Weight & dimensions
| Depth |
45 mm |
| Width (with stand) |
530 mm |
| Weight |
3600 g |
| Width |
530 mm |
| Height |
357 mm |
| Depth (with stand) |
200 mm |
| Height (with stand) |
406 mm |
Audio
| RMS rated power |
6 W |
| Built-in speaker(s) |
Y |
| Number of speakers |
2 |
TV tuner
| Tuner type |
Analog & Digital |
| Digital signal format system |
DVB-T |
Additionally
| Colour of product |
Black |
| Ethernet LAN connection |
N |
| Energy efficiency compliance |
Unspecified |

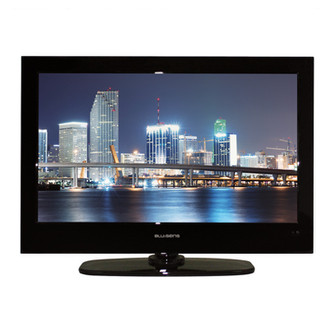

55.88 cm (22 ") LED (1920 x 1080), 250 cd/m², 5 ms, 80000:1, 2 x 3W, HDMI, USB, Black
LED-TV High Definition screen and 16 million colors with HD DVB-T tuner MPEG-4/H264. Player and recorder from the conventional and high definition DVB-T USB Host Port, and CAM Module Interface for pay TV channels. High definition Matroska MKV/H264 files playback. Includes device security mode (Programmable Hotel Mode) and external power supply. With integrated speakers and multiple I/O connections including HDMI. Rotate stand. Allows wall mount.
FUNCTIONS
- DVB-T MPEG-2 and Analogue TV tuner
- High Definition HD DVB-T MPEG-4/H264
- Audio, Video and photo files playback from USB device
- Records in .TS files with all the information that includes the selected channel, subtitles or different languages
- Timeshift function for playing while recording continues
- Teletext and sleep timer
- Security lock for parental channel control
- Energetic Save
INPUTS/OUTPUTS
- HDMI high definition input
- USB 2.0 High speed port
- Common Interface slot
- Audio and video composite input
- Component video input (YPbPr)
- SCART A/V input (euroconnector)
- PC VGA (D-Sub) video input
- PC Audio Input
- RF antenna input
- Coaxial digital output
- Audio output for headphones
MULTIMEDIA MODE (USB)
- Video: MPEG1/2, MPEG 4.2 (AVI-XVID),MPEG 4.10 AVC-H264, .TS (MPEG2-H264-HDTV), MKV, MP4
- Photo: JPEG, BMP, PNG
- Audio: MP3 (ID3Tag), AAC, M4A
- Record: MPEG2/H264 (.TS) only FAT32
- File system: FAT32 y NTFS (only read)
