Battery
| Battery capacity |
7 Ah |
| Battery recharge time |
5 h |
| Battery voltage |
12 V |
| Typical backup time at full load |
7 min |
| Cold start |
Y |
Performance
| Noise level |
50 dB |
| Waveform |
Sine |
| UPS topology |
Double-conversion (Online) |
Power
| Input operation voltage (max) |
276 V |
| Input operation voltage (min) |
110 V |
| Efficiency |
96% |
| Output voltage THD |
5% |
| Power supply input frequency |
45/66 Hz |
| Input current THD |
5% |
| Output power capacity |
6000 VA |
| Crest factor |
3:1 |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Input power factor |
0.99 |
| Output power factor |
0.9 |
| Output voltage regulation |
1% |
| Output power |
5400 W |

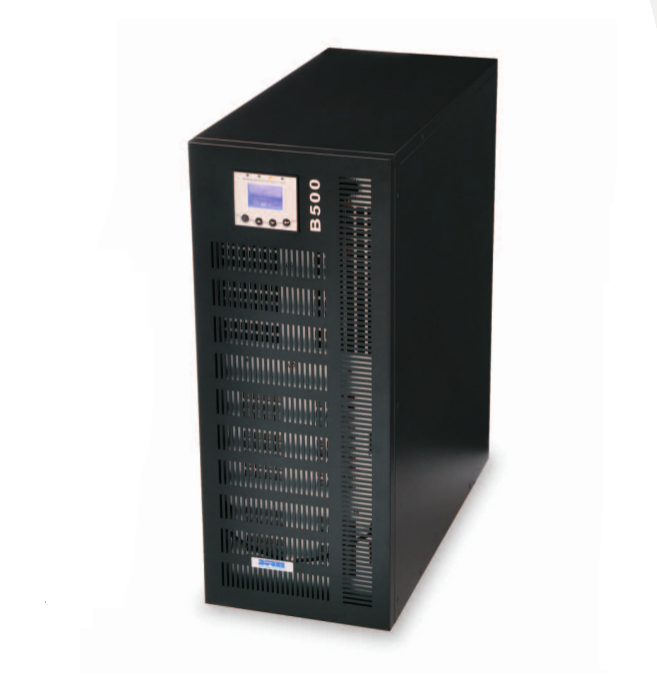

6000 VA, RS-232, USB, 100 ms, 110-276 VAC, 86 kg, Black
On-line Double Conversion
The B500 range was developed around the highest level of protection (On-line Double Conversion), this means that the output is VFI (Voltage& Frequency Independent) allowing the critical load power to be constantly maintained by the UPS inverter, this in turn means the load does not see any mains borne interferences and delivers a zero-break transition from utility power to battery.
More Power / Smaller Footprint
Ideal for all critical IT Environments where space is at a premium. The tower based UPS delivers up to 25% more usable power than other manufacturers thanks to a 0.9 Output Power Factor. The B500 also comes complete with internal batteries as standard, throughout the range, eliminating the need for external battery cabinets on standard run times, minimising the footprint and therefore maximising floor space for other equipment.
Highest Protection
The B500 includes a static and internal manual bypass switch as standard, with zero transfer time between inverter and bypass. The wide input voltage window reduces the amount of time spent on switching to or running on battery power, thereby increasing battery service life, UPS efficiency and reliability. A powerful internal charger enables backup times of up to 8 hours with a 6 hour recover time.
Frequency Converter
All of the B500 range can be used as a frequency converter.
Future Expansion or Redundancy
To future proof the investment in a B500 UPS, up to four additional units can be connected in parallel. The B500 is genuinely "easy parallel", all equipment needed for parallel operation is included within the initial purchase of the first unit making it very simple to provide further capacity or redundancy.
UPS Management
The B500 features an Intelligent Slot for the installation of programmable relay alarm cards, SNMP communication or RS485 MODBUS connection. In addition, the B500 has USB and RS232 communication for connection to a local server, a programmable dry relay contact, an EPO connection facility and a connection for interlocking with an external bypass switch as standard. The product comes complete with a free download of user friendly monitoring and shut-down software suitable for the majority of operating systems.
Generator Friendly
The rectifier stage of the B500 has been designed to provide a unity input power factor and Input Total Harmonic Distortion (THDi) of 5% maximum. This makes the UPS extremely generator friendly, increases efficiency and negates the need to oversize input cables and switchgear.
