Performance
| Vibration emission (metal) |
2.5 m/s² |
| Maximum torque (hard applications) |
60 Nm |
| Drilling diameter in concrete (max) |
13 mm |
| No-load speed (1st gear) |
500 RPM |
| No-load speed (2nd gear) |
1700 RPM |
| Chuck jaw width (min) |
1.5 mm |
| Chuck jaw width (max) |
13 mm |
| Sound pressure level |
89 dB |
| Maximum torque (soft applications) |
23 Nm |
| Drilling diameter in steel (max) |
13 mm |
| Drilling diameter in wood (max) |
32 mm |
| Impact rate (high speed) |
25500 bpm |
| Vibration emission (concrete) |
13 m/s² |
| Uncertainty K |
3 dB |
| Uncertainty K |
1.5 m/s² |
| Screw diameter (max) |
8 mm |
| Sound power level |
100 dB |
Features
| Keyless chuck |
Y |
| Electronic Cell Protection (ECP) |
Y |
| Combi tool application |
Drilling, Impact drilling, Screwdriving |
| Spindle thread |
1/2" |
| Forward/Reverse operation |
Y |
| Torque settings |
19 |
| Type |
Pistol grip drill |
| Soft grip |
Y |
| Built-in light |
Y |
Battery
| Battery capacity |
2 Ah |
| Battery voltage |
18 V |
Packaging content
| Plastic case |
Y |
| Battery pack |
Y |
| Number of batteries included |
2 |
| Battery charger included |
Y |

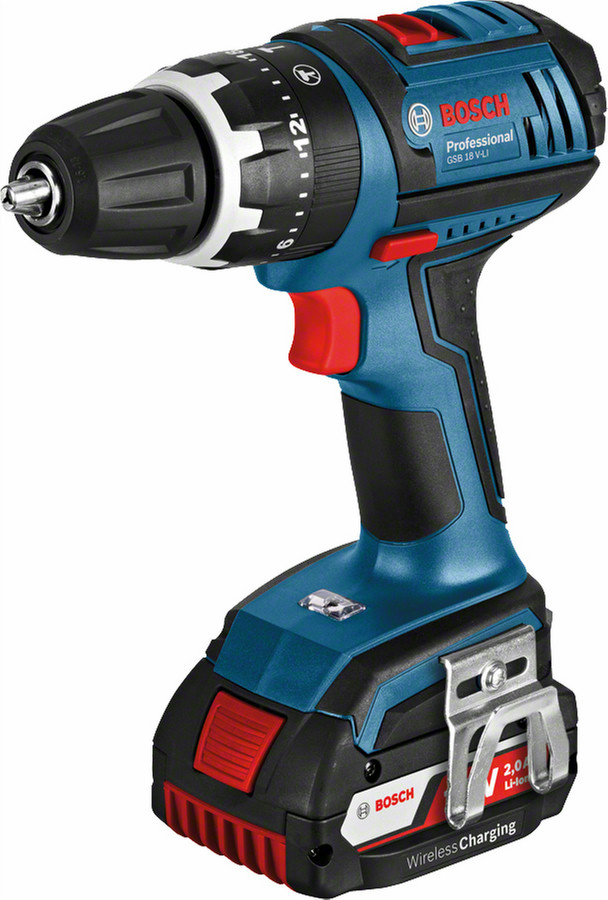

60/23 Nm, 500/1700 rpm, 1.5-13 mm, 25500 bpm, 18 V, 2 Ah, 1.8 kg
The compact 18 volt endurance runner with impact drilling function. Always ready to use thanks to new Wireless Charging System
- Integrated impact drilling function for drilling in masonry up to 13 mm
- Innovative CoolPack batteries ensure optimum heat dissipation and therefore increase lifetime by up to 100% (cf. Li-Ion batteries without CoolPack)
- Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and deep discharge
- 13-mm Auto-Lock drill chuck
- Integrated LED light for illuminating the work area, even in dark places
- Mountable bit holder for easy transport and storage of bits on the tool
- Practical belt clip for conveniently hanging the tool on a belt or ladder
- Motor brake for precise work when driving rows of screws
- Convenient: the Wireless Charging System integrates charging into the workflow
- Robust: GAL 1830 W – durable against dust and water due to closed design (no contacts)
- Extremely compact due to shortest design (only 195 mm) in its class and even lower weight (only 1.8 kg) for perfect handling
